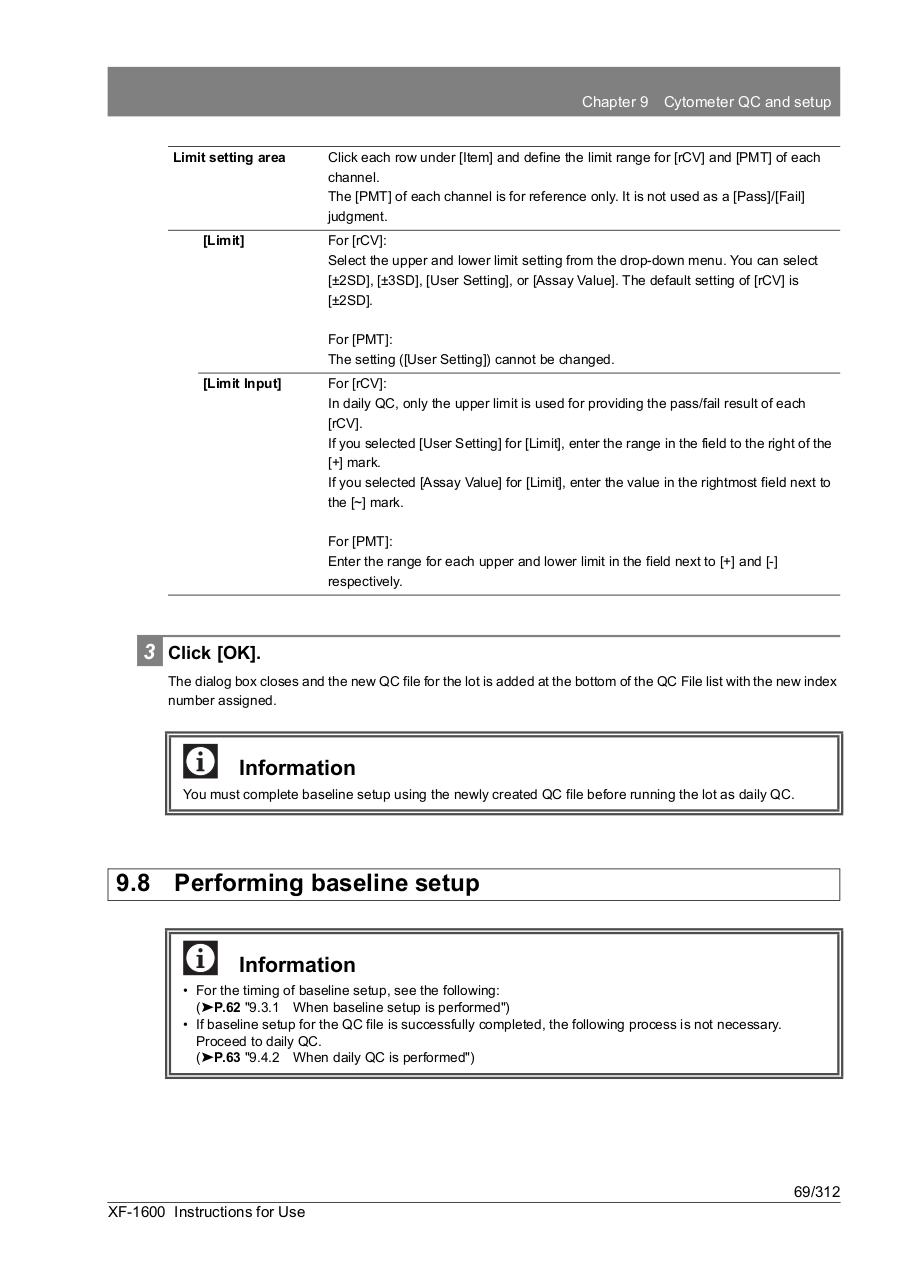

Chapter 9

Limit setting area

[Limit]

Cytometer QC and setup

Click each row under [Item] and define the limit range for [rCV] and [PMT] of each
channel.
The [PMT] of each channel is for reference only. It is not used as a [Pass]/[Fail]
judgment.
For [rCV]:
Select the upper and lower limit setting from the drop-down menu. You can select
[±2SD], [±3SD], [User Setting], or [Assay Value]. The default setting of [rCV] is
[±2SD].
For [PMT]:
The setting ([User Setting]) cannot be changed.

[Limit Input]

For [rCV]:
In daily QC, only the upper limit is used for providing the pass/fail result of each
[rCV].
If you selected [User Setting] for [Limit], enter the range in the field to the right of the
[+] mark.
If you selected [Assay Value] for [Limit], enter the value in the rightmost field next to
the [~] mark.
For [PMT]:
Enter the range for each upper and lower limit in the field next to [+] and [-]
respectively.

3 Click [OK].
The dialog box closes and the new QC file for the lot is added at the bottom of the QC File list with the new index
number assigned.

Information
You must complete baseline setup using the newly created QC file before running the lot as daily QC.

9.8

Performing baseline setup
Information
• For the timing of baseline setup, see the following:
(➤P.62 "9.3.1 When baseline setup is performed")
• If baseline setup for the QC file is successfully completed, the following process is not necessary.
Proceed to daily QC.
(➤P.63 "9.4.2 When daily QC is performed")

69/312
XF-1600 Instructions for Use
