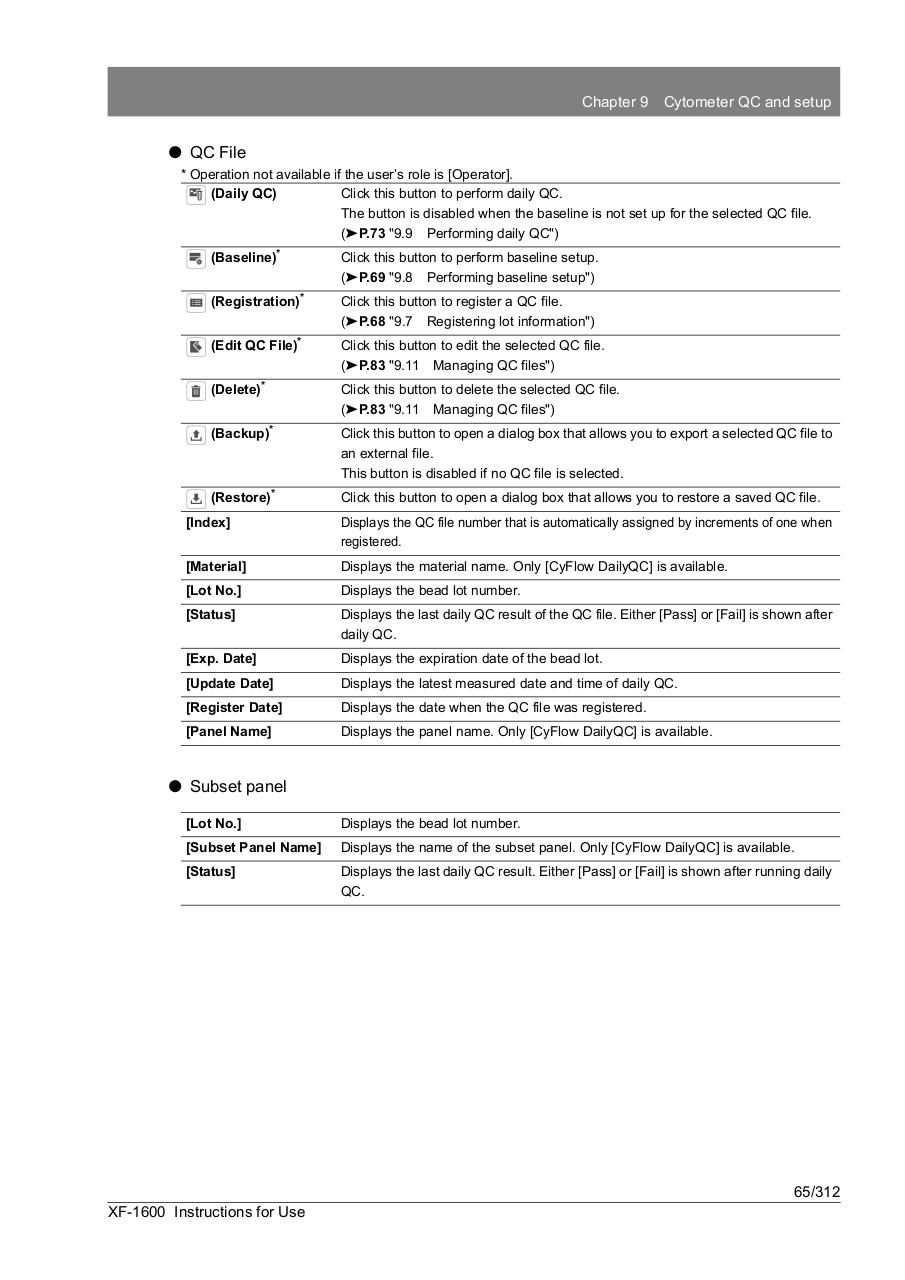

Chapter 9

Cytometer QC and setup

⏺ QC File
* Operation not available if the user’s role is [Operator].
(Daily QC)
Click this button to perform daily QC.
The button is disabled when the baseline is not set up for the selected QC file.
(➤P.73 "9.9 Performing daily QC")
(Baseline)*

Click this button to perform baseline setup.
(➤P.69 "9.8 Performing baseline setup")

(Registration)*

Click this button to register a QC file.
(➤P.68 "9.7 Registering lot information")

(Edit QC File)*

Click this button to edit the selected QC file.
(➤P.83 "9.11 Managing QC files")

(Delete)*

Click this button to delete the selected QC file.
(➤P.83 "9.11 Managing QC files")

(Backup)*

Click this button to open a dialog box that allows you to export a selected QC file to
an external file.
This button is disabled if no QC file is selected.

(Restore)*

Click this button to open a dialog box that allows you to restore a saved QC file.

[Index]

Displays the QC file number that is automatically assigned by increments of one when
registered.

[Material]

Displays the material name. Only [CyFlow DailyQC] is available.

[Lot No.]

Displays the bead lot number.

[Status]

Displays the last daily QC result of the QC file. Either [Pass] or [Fail] is shown after
daily QC.

[Exp. Date]

Displays the expiration date of the bead lot.

[Update Date]

Displays the latest measured date and time of daily QC.

[Register Date]

Displays the date when the QC file was registered.

[Panel Name]

Displays the panel name. Only [CyFlow DailyQC] is available.

⏺ Subset panel
[Lot No.]

Displays the bead lot number.

[Subset Panel Name]

Displays the name of the subset panel. Only [CyFlow DailyQC] is available.

[Status]

Displays the last daily QC result. Either [Pass] or [Fail] is shown after running daily
QC.

65/312
XF-1600 Instructions for Use
