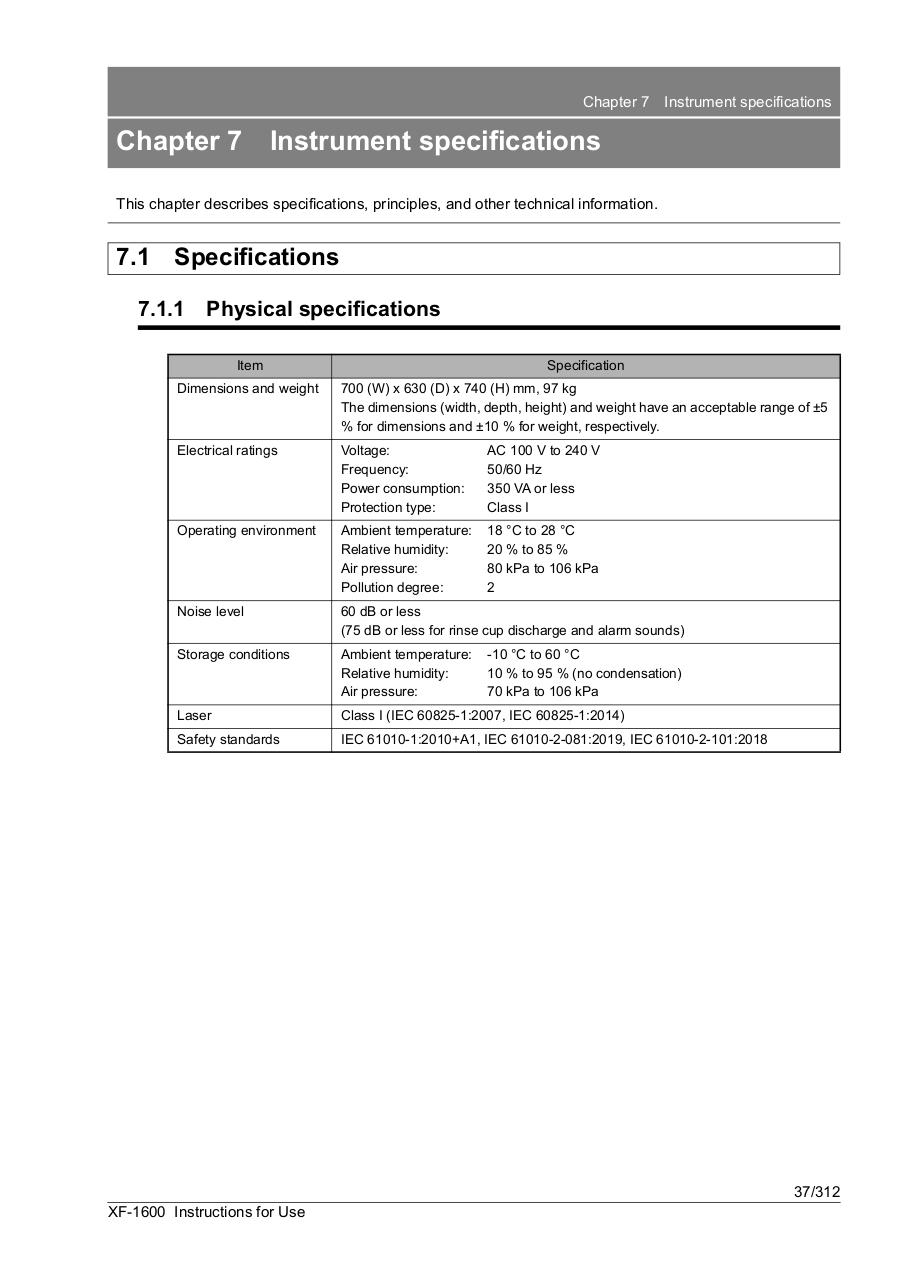

Chapter 7

Instrument specifications

Chapter 7 Instrument specifications
This chapter describes specifications, principles, and other technical information.

7.1

Specifications

7.1.1

Physical specifications
Item

Specification

Dimensions and weight

700 (W) x 630 (D) x 740 (H) mm, 97 kg
The dimensions (width, depth, height) and weight have an acceptable range of ±5
% for dimensions and ±10 % for weight, respectively.

Electrical ratings

Voltage:
Frequency:
Power consumption:
Protection type:

AC 100 V to 240 V
50/60 Hz
350 VA or less
Class I

Operating environment

Ambient temperature:
Relative humidity:
Air pressure:
Pollution degree:

18 °C to 28 °C
20 % to 85 %
80 kPa to 106 kPa
2

Noise level

60 dB or less
(75 dB or less for rinse cup discharge and alarm sounds)

Storage conditions

Ambient temperature:
Relative humidity:
Air pressure:

Laser

Class I (IEC 60825-1:2007, IEC 60825-1:2014)

Safety standards

IEC 61010-1:2010+A1, IEC 61010-2-081:2019, IEC 61010-2-101:2018

-10 °C to 60 °C
10 % to 95 % (no condensation)
70 kPa to 106 kPa

37/312
XF-1600 Instructions for Use
