Chapter 6

Installation

Caution
Use the Sysmex-specified power cables. Do not use the Sysmex-specified power cables for any equipment
other than this instrument.

6.2.3 Installation environment
For the operating environment (ambient temperature, relative humidity, and air pressure), see the following:
(➤P.37 "Chapter 7: 7.1.1 Physical specifications")
For other conditions, see the following:
(➤P.16 "Chapter 2: 2.3 Installation")

Information
If the environment does not meet the ambient temperature and humidity requirements, control the
environment with air conditioning.

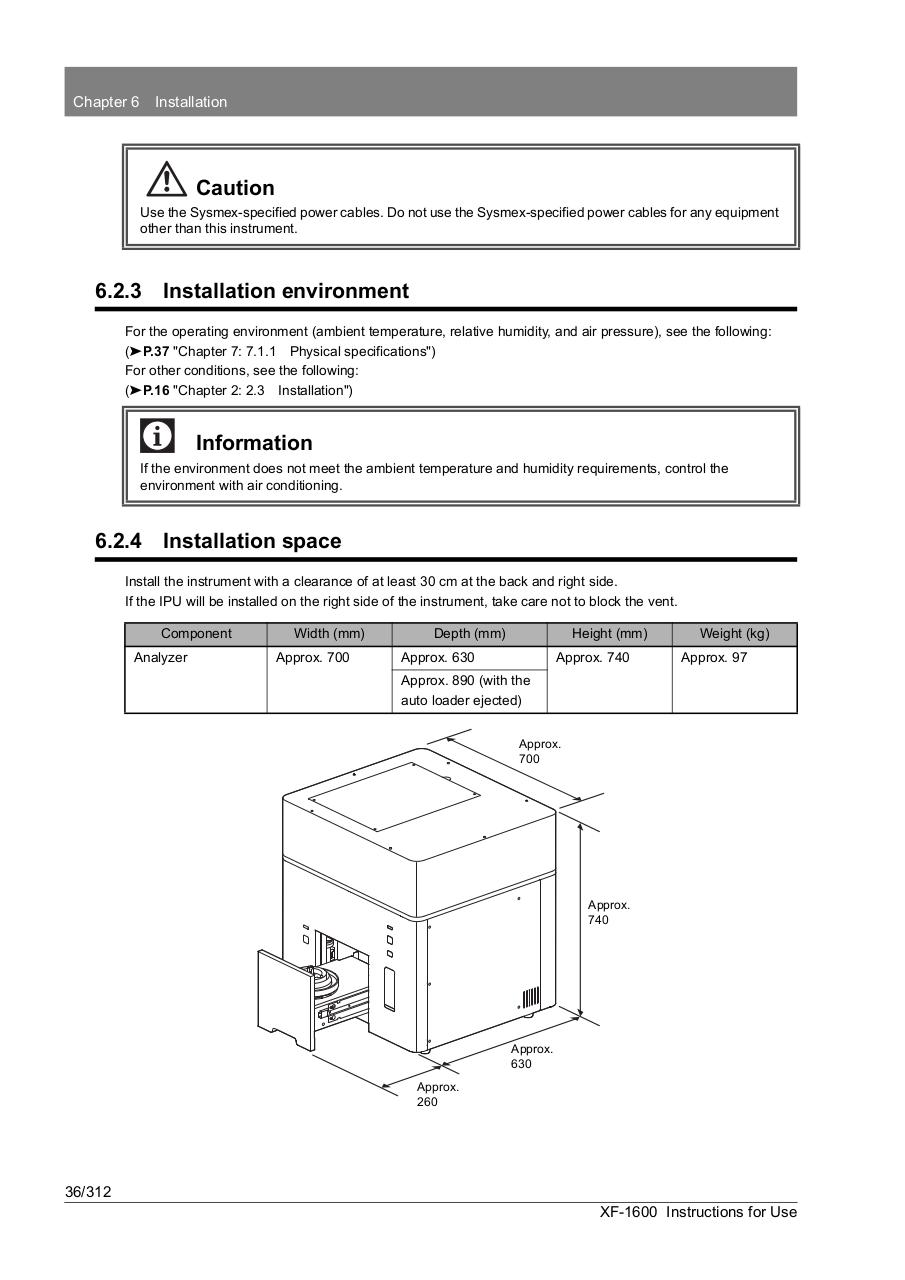

6.2.4 Installation space
Install the instrument with a clearance of at least 30 cm at the back and right side.
If the IPU will be installed on the right side of the instrument, take care not to block the vent.
Component
Analyzer

Width (mm)
Approx. 700

Depth (mm)

Height (mm)

Approx. 630

Approx. 740

Weight (kg)
Approx. 97

Approx. 890 (with the
auto loader ejected)
Approx.
700

Approx.
740

Approx.
630
Approx.
260

36/312
XF-1600 Instructions for Use
