Chapter 3

Part names and functions

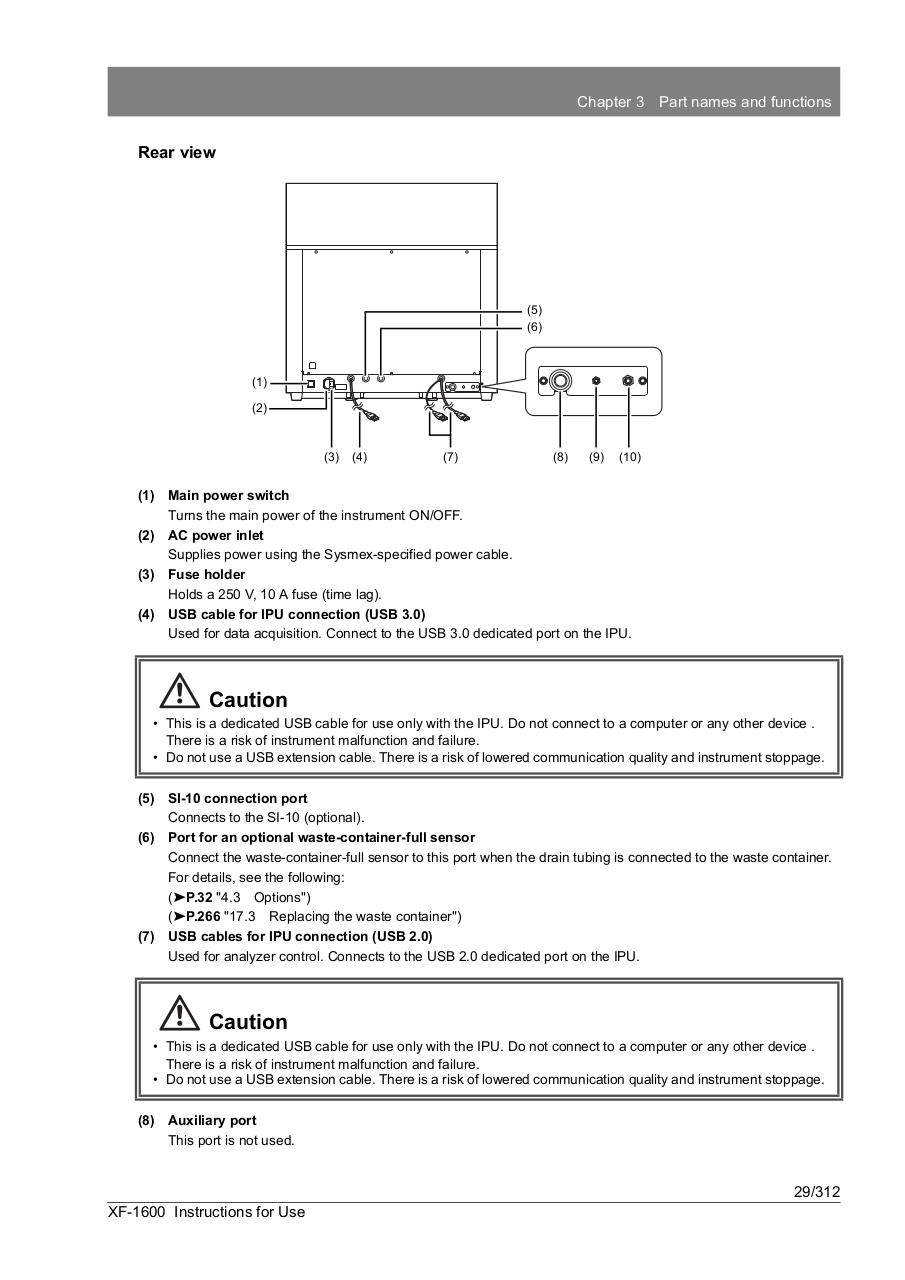

Rear view

(5)
(6)

(1)
(2)

(3)

(4)

(7)

(8)

(9)

(10)

(1) Main power switch
Turns the main power of the instrument ON/OFF.
(2) AC power inlet
Supplies power using the Sysmex-specified power cable.
(3) Fuse holder
Holds a 250 V, 10 A fuse (time lag).
(4) USB cable for IPU connection (USB 3.0)
Used for data acquisition. Connect to the USB 3.0 dedicated port on the IPU.

Caution
• This is a dedicated USB cable for use only with the IPU. Do not connect to a computer or any other device .
There is a risk of instrument malfunction and failure.
• Do not use a USB extension cable. There is a risk of lowered communication quality and instrument stoppage.
(5) SI-10 connection port
Connects to the SI-10 (optional).
(6) Port for an optional waste-container-full sensor
Connect the waste-container-full sensor to this port when the drain tubing is connected to the waste container.
For details, see the following:
(➤P.32 "4.3 Options")
(➤P.266 "17.3 Replacing the waste container")
(7) USB cables for IPU connection (USB 2.0)
Used for analyzer control. Connects to the USB 2.0 dedicated port on the IPU.

Caution
• This is a dedicated USB cable for use only with the IPU. Do not connect to a computer or any other device .
There is a risk of instrument malfunction and failure.
• Do not use a USB extension cable. There is a risk of lowered communication quality and instrument stoppage.
(8) Auxiliary port
This port is not used.
