Chapter 3

Part names and functions

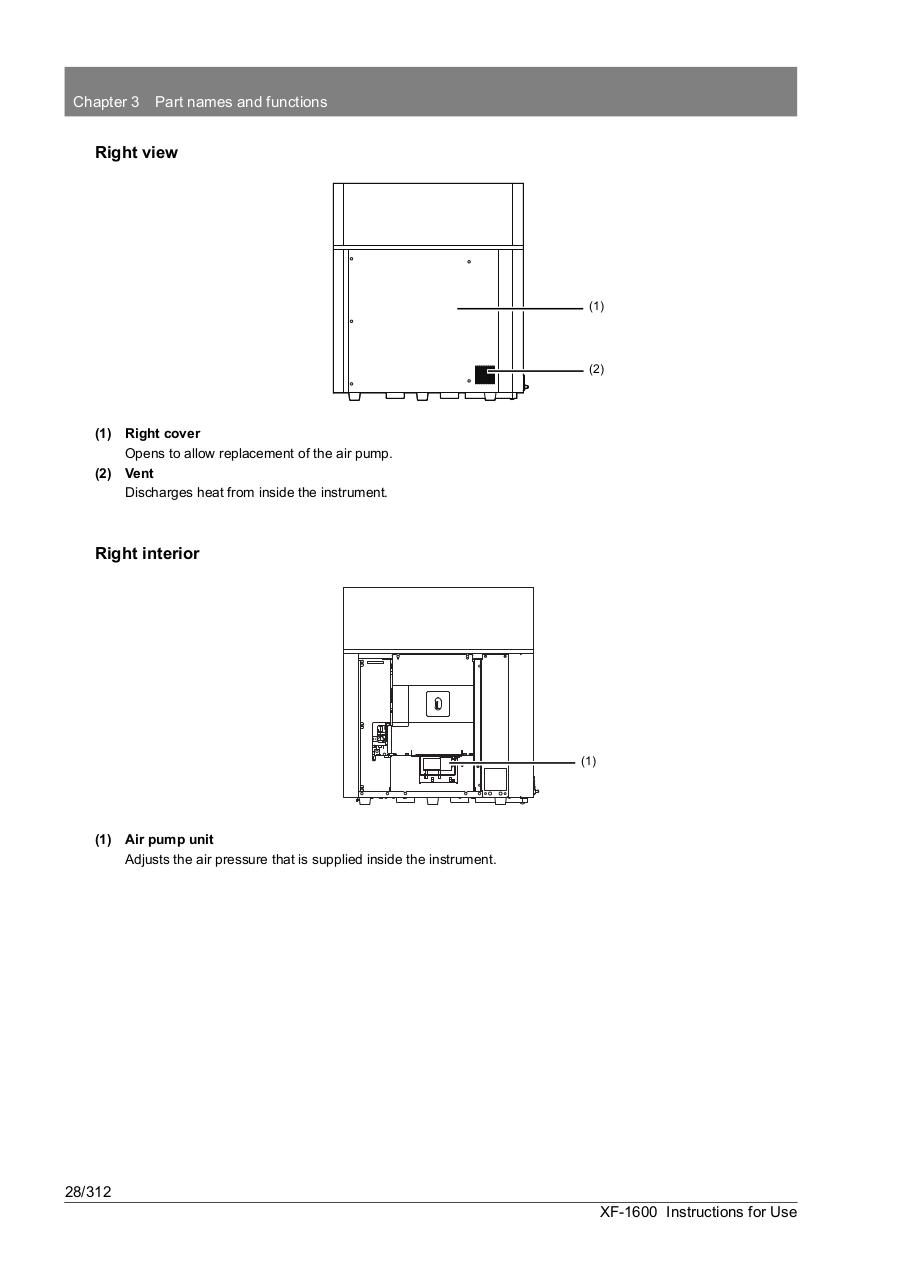

Right view

(1)

(2)

(1) Right cover
Opens to allow replacement of the air pump.
(2) Vent
Discharges heat from inside the instrument.

Right interior

(1)

(1) Air pump unit
Adjusts the air pressure that is supplied inside the instrument.
