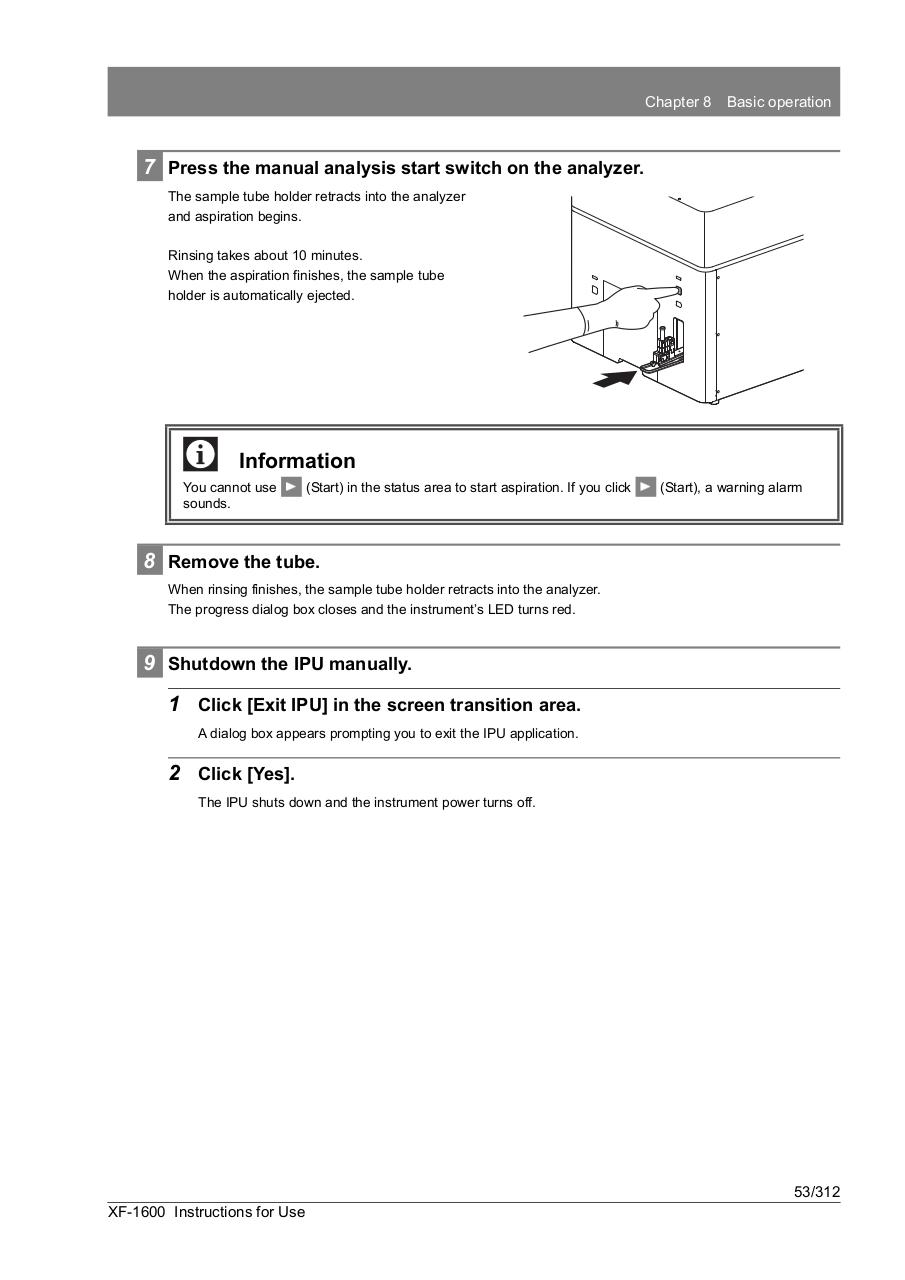

Chapter 8

Basic operation

7 Press the manual analysis start switch on the analyzer.
The sample tube holder retracts into the analyzer
and aspiration begins.
Rinsing takes about 10 minutes.
When the aspiration finishes, the sample tube
holder is automatically ejected.

Information
You cannot use
sounds.

(Start) in the status area to start aspiration. If you click

(Start), a warning alarm

8 Remove the tube.
When rinsing finishes, the sample tube holder retracts into the analyzer.
The progress dialog box closes and the instrument’s LED turns red.

9 Shutdown the IPU manually.
1 Click [Exit IPU] in the screen transition area.
A dialog box appears prompting you to exit the IPU application.

2 Click [Yes].
The IPU shuts down and the instrument power turns off.

53/312
XF-1600 Instructions for Use
