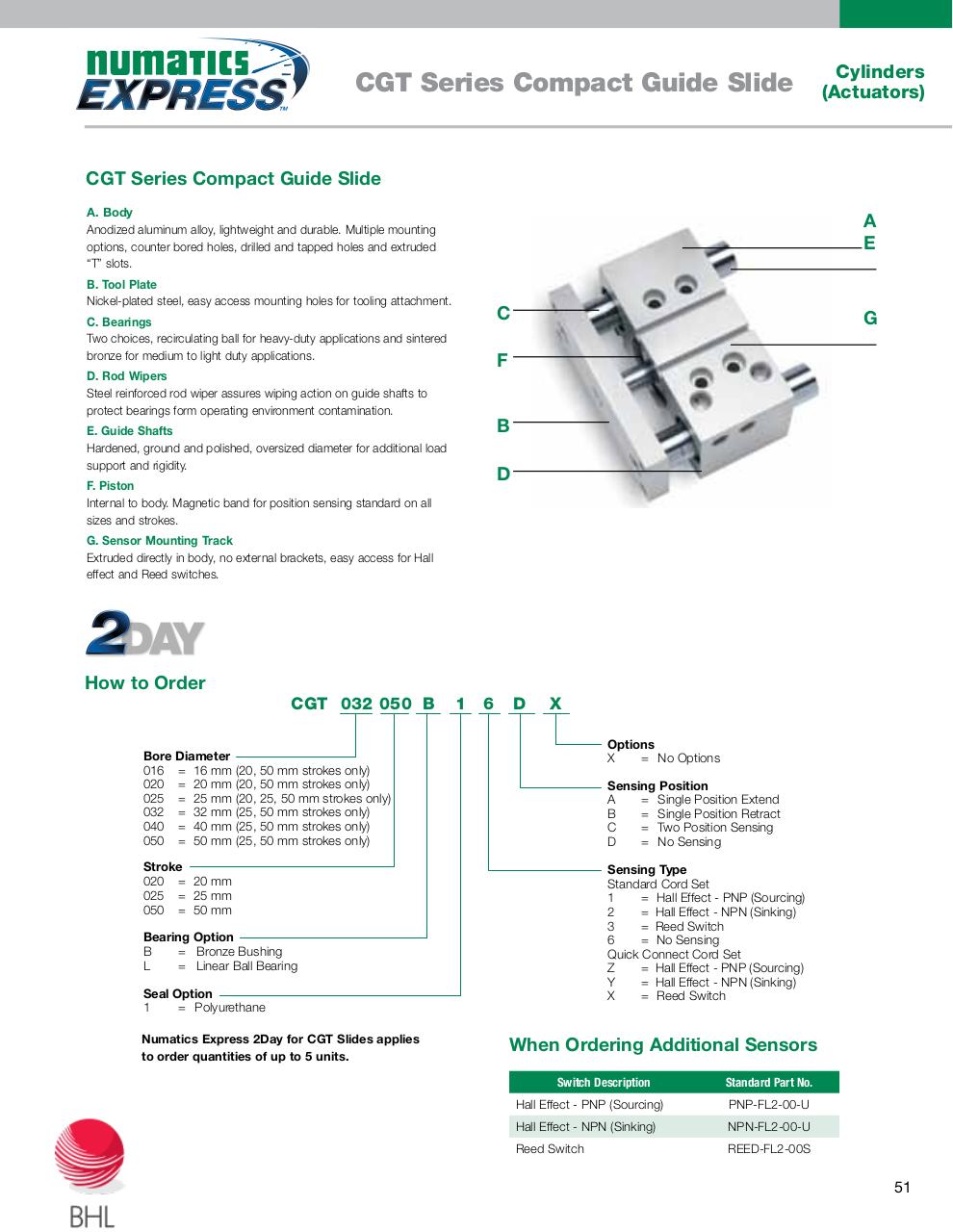

CGT Series Compact Guide Slide

Cylinders
(Actuators)

CGT Series Compact Guide Slide
A. Body
!NODIZEDALUMINUMALLOYLIGHTWEIGHTANDDURABLE-ULTIPLEMOUNTING
OPTIONSCOUNTERBOREDHOLESDRILLEDANDTAPPEDHOLESANDEXTRUDED
“T” slots.

A
E

B. Tool Plate
.ICKEL PLATEDSTEELEASYACCESSMOUNTINGHOLESFORTOOLINGATTACHMENT

C

C. Bearings
4WOCHOICESRECIRCULATINGBALLFORHEAVY DUTYAPPLICATIONSANDSINTERED
BRONZEFORMEDIUMTOLIGHTDUTYAPPLICATIONS

G

F

D. Rod Wipers
3TEELREINFORCEDRODWIPERASSURESWIPINGACTIONONGUIDESHAFTSTO
PROTECTBEARINGSFORMOPERATINGENVIRONMENTCONTAMINATION

B

E. Guide Shafts
(ARDENEDGROUNDANDPOLISHEDOVERSIZEDDIAMETERFORADDITIONALLOAD
SUPPORTANDRIGIDITY

D

F. Piston
)NTERNALTOBODY-AGNETICBANDFORPOSITIONSENSINGSTANDARDONALL
SIZESANDSTROKES
G. Sensor Mounting Track
%XTRUDEDDIRECTLYINBODYNOEXTERNALBRACKETSEASYACCESSFOR(ALL
EFFECTAND2EEDSWITCHES

How to Order

CGT 032 050 B

1

6

D

X
Options
X
= No Options

Bore Diameter
016 = 16 mm (20, 50 mm strokes only)
020 = 20 mm (20, 50 mm strokes only)
025 = 25 mm (20, 25, 50 mm strokes only)
032 = 32 mm (25, 50 mm strokes only)
040 = 40 mm (25, 50 mm strokes only)
050 = 50 mm (25, 50 mm strokes only)

Sensing Position
A
= Single Position Extend
B
= Single Position Retract
C
= Two Position Sensing
D
= No Sensing

Stroke
020 = 20 mm
025 = 25 mm
050 = 50 mm

Sensing Type
Standard Cord Set
1
= Hall Effect - PNP (Sourcing)
2
= Hall Effect - NPN (Sinking)
3
= Reed Switch
6
= No Sensing
Quick Connect Cord Set
Z
= Hall Effect - PNP (Sourcing)
Y
= Hall Effect - NPN (Sinking)
X
= Reed Switch

Bearing Option
B
= Bronze Bushing
L
= Linear Ball Bearing
Seal Option
1
= Polyurethane
Numatics Express 2Day for CGT Slides applies
to order quantities of up to 5 units.

When Ordering Additional Sensors
Switch Description

Standard Part No.

(ALL%FFECT 0.03OURCING

0.0 &,  5

(ALL%FFECT .0.3INKING

.0. &,  5

2EED3WITCH

2%%$ &, 3

For detailed dimensional information and technical specifications, please visit www.numatics.com. Information subject to change without notice.

51
