SH Series

Cylinders
(Actuators)

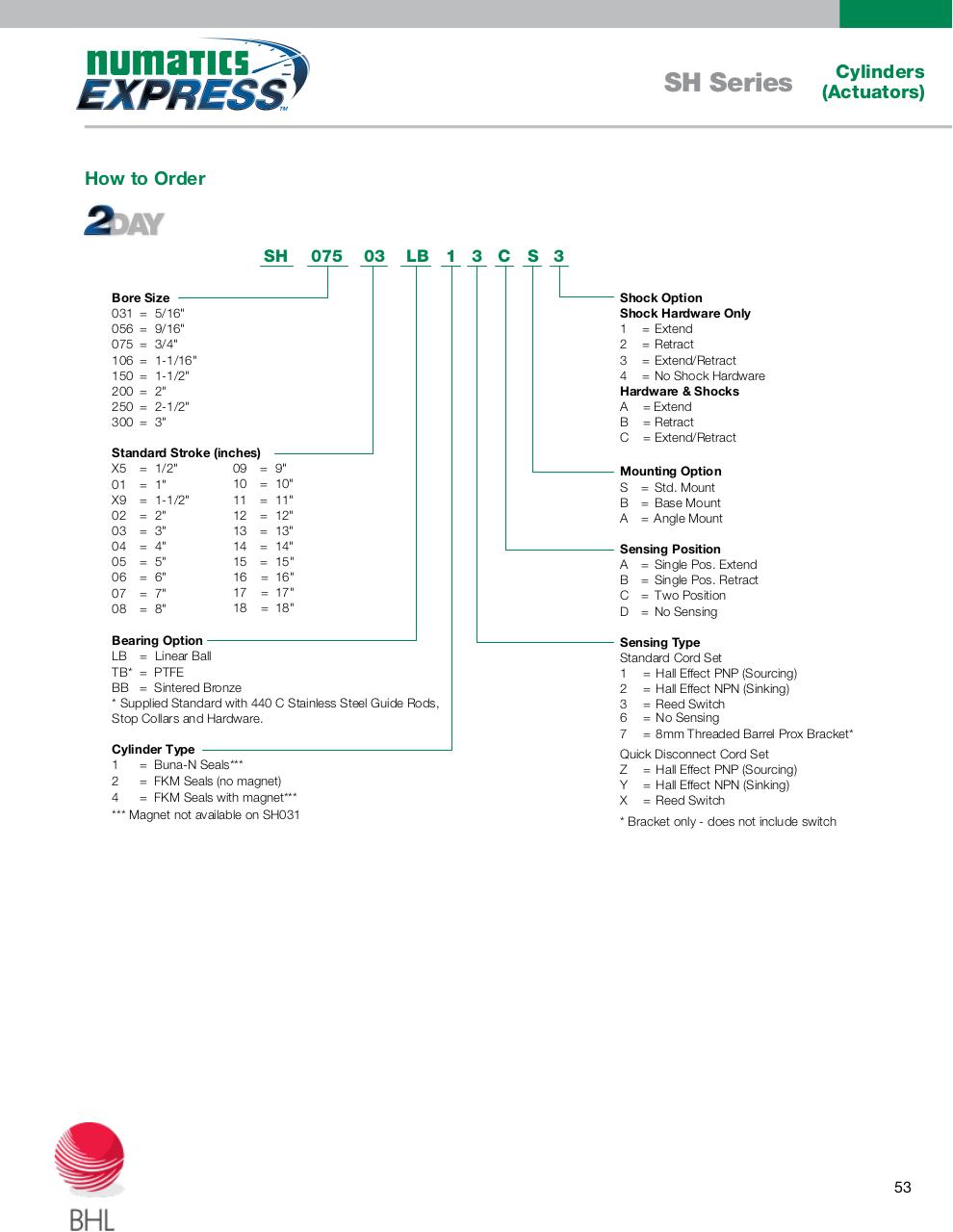

How to Order

SH

075

03

LB 1 3 C

Bore Size
031 = 5/16"
056 = 9/16"
075 = 3/4"
106 = 1-1/16"
150 = 1-1/2"
200 = 2"
250 = 2-1/2"
300 = 3"
Standard Stroke (inches)
09 =
X5 = 1/2"
10 =
01 = 1"
11 =
X9 = 1-1/2"
12 =
02 = 2"
13 =
03 = 3"
14 =
04 = 4"
15 =
05 = 5"
16 =
06 = 6"
17 =
07 = 7"
18 =
08 = 8"

S 3
Shock Option
Shock Hardware Only
1 = Extend
2 = Retract
3 = Extend/Retract
4 = No Shock Hardware
Hardware & Shocks
A = Extend
B = Retract
C = Extend/Retract

9"
10"
11"
12"
13"
14"
15"
16"
17"
18"

Mounting Option
S = Std. Mount
B = Base Mount
A = Angle Mount
Sensing Position
A = Single Pos. Extend
B = Single Pos. Retract
C = Two Position
D = No Sensing

Bearing Option
LB = Linear Ball
TB* = PTFE
BB = Sintered Bronze
* Supplied Standard with 440 C Stainless Steel Guide Rods,
Stop Collars and Hardware.

Sensing Type
Standard Cord Set
1 = Hall Effect PNP (Sourcing)
2 = Hall Effect NPN (Sinking)
3 = Reed Switch
6 = No Sensing
7 = 8mm Threaded Barrel Prox Bracket*

Cylinder Type
= Buna-N Seals***
1
= FKM Seals (no magnet)
2
= FKM Seals with magnet***
4
*** Magnet not available on SH031

Quick Disconnect Cord Set
Z = Hall Effect PNP (Sourcing)
Y = Hall Effect NPN (Sinking)
X = Reed Switch
* Bracket only - does not include switch

For detailed dimensional information and technical specifications, please visit www.numatics.com. Information subject to change without notice.

53
