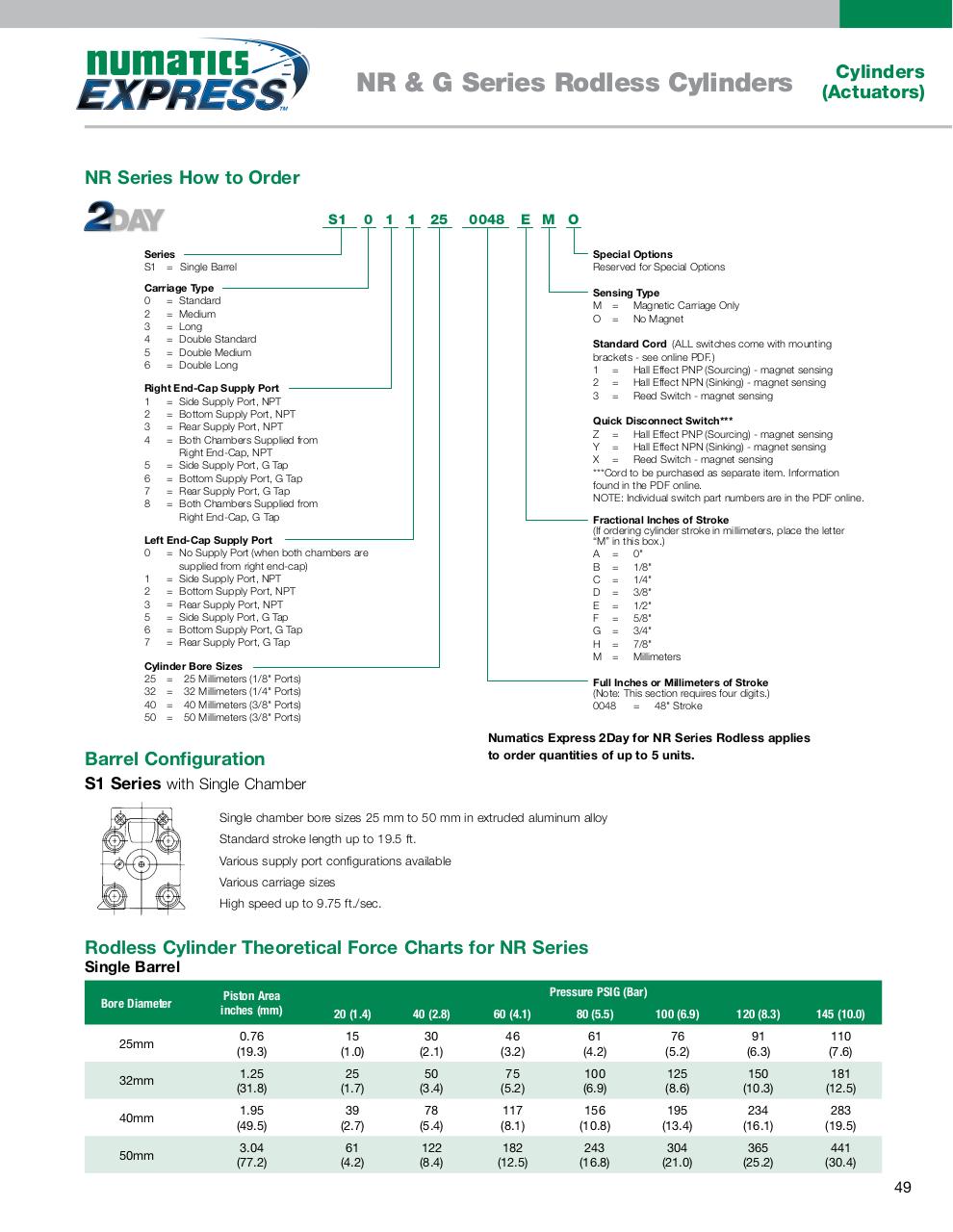

Vista previa del archivo PDF numatics-catalogo-entrega-inmediata.pdf


Página 1...51 52 53545574

Vista previa de texto


NR & G Series Rodless Cylinders

Cylinders
(Actuators)

NR Series How to Order
S1

0 1 1

25

0048

E M O

Series
S1 = Single Barrel

Special Options
Reserved for Special Options

Carriage Type
= Standard
0
= Medium
2
= Long
3
= Double Standard
4
= Double Medium
5
= Double Long
6

Sensing Type
M = Magnetic Carriage Only
O = No Magnet
Standard Cord (ALL switches come with mounting
brackets - see online PDF.)
1 = Hall Effect PNP (Sourcing) - magnet sensing
2 = Hall Effect NPN (Sinking) - magnet sensing
3 = Reed Switch - magnet sensing

Right End-Cap Supply Port
= Side Supply Port, NPT
1
= Bottom Supply Port, NPT
2
= Rear Supply Port, NPT
3
= Both Chambers Supplied from
4
Right End-Cap, NPT
5
= Side Supply Port, G Tap
6
= Bottom Supply Port, G Tap
7
= Rear Supply Port, G Tap
8
= Both Chambers Supplied from
Right End-Cap, G Tap

Quick Disconnect Switch***
Z = Hall Effect PNP (Sourcing) - magnet sensing
Y = Hall Effect NPN (Sinking) - magnet sensing
X = Reed Switch - magnet sensing
***Cord to be purchased as separate item. Information
found in the PDF online.
NOTE: Individual switch part numbers are in the PDF online.
Fractional Inches of Stroke
(If ordering cylinder stroke in millimeters, place the letter
“M” in this box.)
A = 0"
B = 1/8"
C = 1/4"
D = 3/8"
E = 1/2"
F = 5/8"
G = 3/4"
H = 7/8"
M = Millimeters

Left End-Cap Supply Port
= No Supply Port (when both chambers are
0
supplied from right end-cap)
= Side Supply Port, NPT
1
= Bottom Supply Port, NPT
2
= Rear Supply Port, NPT
3
= Side Supply Port, G Tap
5
6
= Bottom Supply Port, G Tap
7
= Rear Supply Port, G Tap
Cylinder Bore Sizes
25 = 25 Millimeters (1/8" Ports)
32 = 32 Millimeters (1/4" Ports)
40 = 40 Millimeters (3/8" Ports)
50 = 50 Millimeters (3/8" Ports)

Full Inches or Millimeters of Stroke
(Note: This section requires four digits.)
0048
= 48" Stroke

Numatics Express 2Day for NR Series Rodless applies
to order quantities of up to 5 units.

Barrel Configuration
S1 Series WITH3INGLE#HAMBER

3INGLECHAMBERBORESIZESMMTOMMINEXTRUDEDALUMINUMALLOY
3TANDARDSTROKELENGTHUPTOFT
6ARIOUSSUPPLYPORTCONFIGURATIONSAVAILABLE
6ARIOUSCARRIAGESIZES
(IGHSPEEDUPTOFTSEC

Rodless Cylinder Theoretical Force Charts for NR Series

Single Barrel

Pressure PSIG (Bar)

Bore Diameter

Piston Area
inches (mm)

20 (1.4)

40 (2.8)

60 (4.1)

80 (5.5)

100 (6.9)

120 (8.3)

145 (10.0)

25mm

0.76
(19.3)

15
(1.0)

30
(2.1)

46
(3.2)

61
(4.2)

76
(5.2)

91
(6.3)

110
(7.6)

32mm

1.25
(31.8)

25
(1.7)

50
(3.4)

75
(5.2)

100
(6.9)

125
(8.6)

150
(10.3)

181
(12.5)

40mm

1.95
(49.5)

39
(2.7)

78
(5.4)

117
(8.1)

156
(10.8)

195
(13.4)

234
(16.1)

283
(19.5)

50mm

3.04
(77.2)

61
(4.2)

122
(8.4)

182
(12.5)

243
(16.8)

304
(21.0)

365
(25.2)

441
(30.4)

For detailed dimensional information and technical specifications, please visit www.numatics.com. Information subject to change without notice.

49
