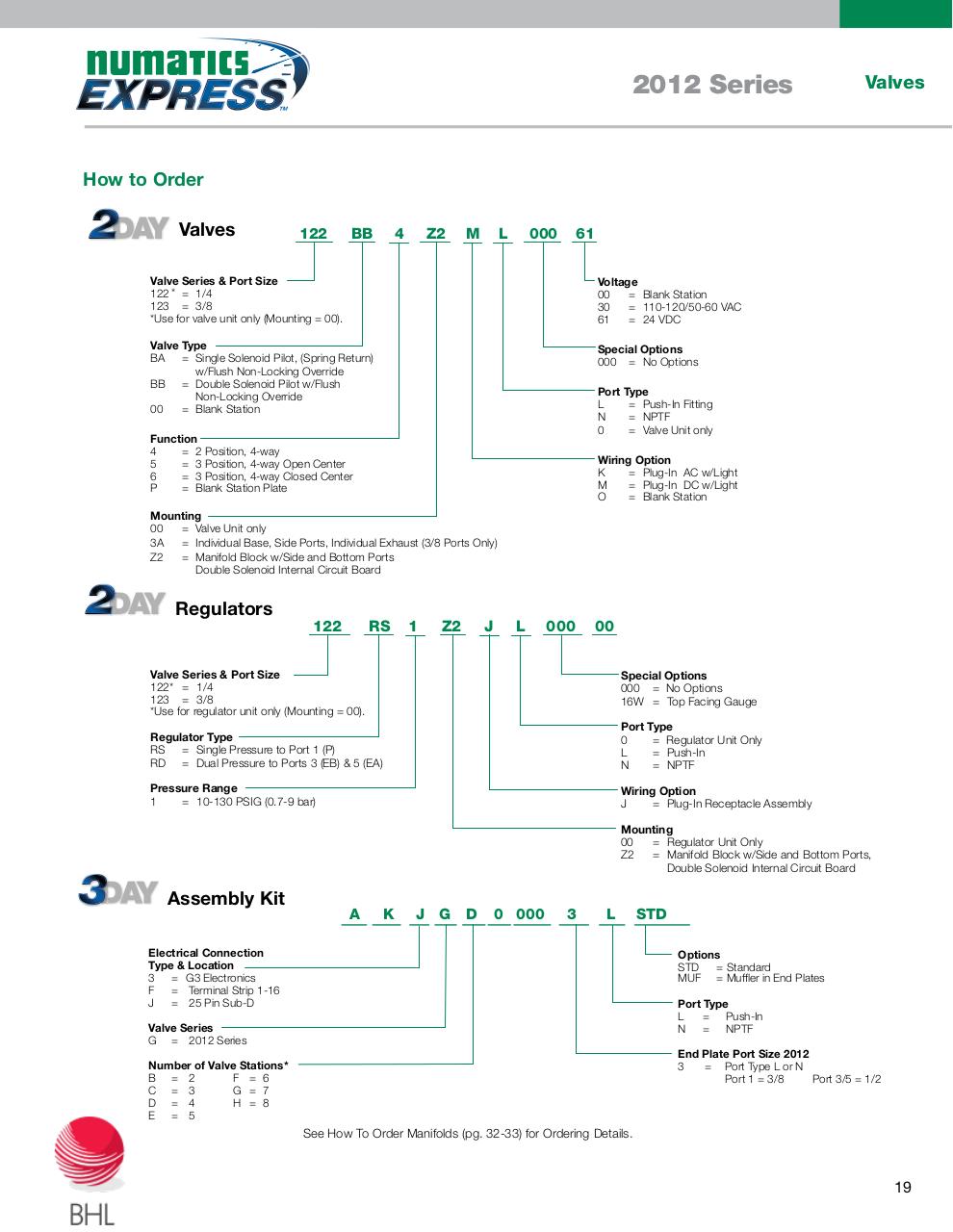

2012 Series

Valves

How to Order
Valves

122

BB

4

Z2

M

L

000

61

Valve Series & Port Size
122 * = 1/4
123 = 3/8
*Use for valve unit only (Mounting = 00).

Voltage
00
= Blank Station
30
= 110-120/50-60 VAC
61
= 24 VDC

Valve Type
BA = Single Solenoid Pilot, (Spring Return)
w/Flush Non-Locking Override
BB = Double Solenoid Pilot w/Flush
Non-Locking Override
00
= Blank Station

Special Options
000 = No Options
Port Type
L
= Push-In Fitting
N
= NPTF
0
= Valve Unit only

Function
4
= 2 Position, 4-way
5
= 3 Position, 4-way Open Center
6
= 3 Position, 4-way Closed Center
P
= Blank Station Plate

Wiring Option
K
= Plug-In AC w/Light
M
= Plug-In DC w/Light
O
= Blank Station

Mounting
00
= Valve Unit only
3A
= Individual Base, Side Ports, Individual Exhaust (3/8 Ports Only)
Z2
= Manifold Block w/Side and Bottom Ports
Double Solenoid Internal Circuit Board

Regulators

122

RS

1

Z2

J

L

000

00

Valve Series & Port Size
122* = 1/4
123 = 3/8
*Use for regulator unit only (Mounting = 00).

Special Options
000 = No Options
16W = Top Facing Gauge

Regulator Type
RS = Single Pressure to Port 1 (P)
RD = Dual Pressure to Ports 3 (EB) & 5 (EA)

Port Type
0
= Regulator Unit Only
L
= Push-In
N
= NPTF

Pressure Range
1
= 10-130 PSIG (0.7-9 bar)

Wiring Option
J
= Plug-In Receptacle Assembly
Mounting
00
= Regulator Unit Only
Z2
= Manifold Block w/Side and Bottom Ports,
Double Solenoid Internal Circuit Board

Assembly Kit

A

K

J G

D

0 000

3

L

Electrical Connection
Type & Location
3 = G3 Electronics
F = Terminal Strip 1-16
J = 25 Pin Sub-D

STD
Options
STD = Standard
MUF = Muffler in End Plates
Port Type
L
= Push-In
N
= NPTF

Valve Series
G = 2012 Series

End Plate Port Size 2012
3
= Port Type L or N
Port 1 = 3/8
Port 3/5 = 1/2

Number of Valve Stations*
B = 2
F = 6
C = 3
G = 7
D = 4
H = 8
E = 5

3EE(OW4O/RDER-ANIFOLDSPG  FOR/RDERING$ETAILS

For detailed dimensional information and technical specifications, please visit www.numatics.com. Information subject to change without notice.

19
