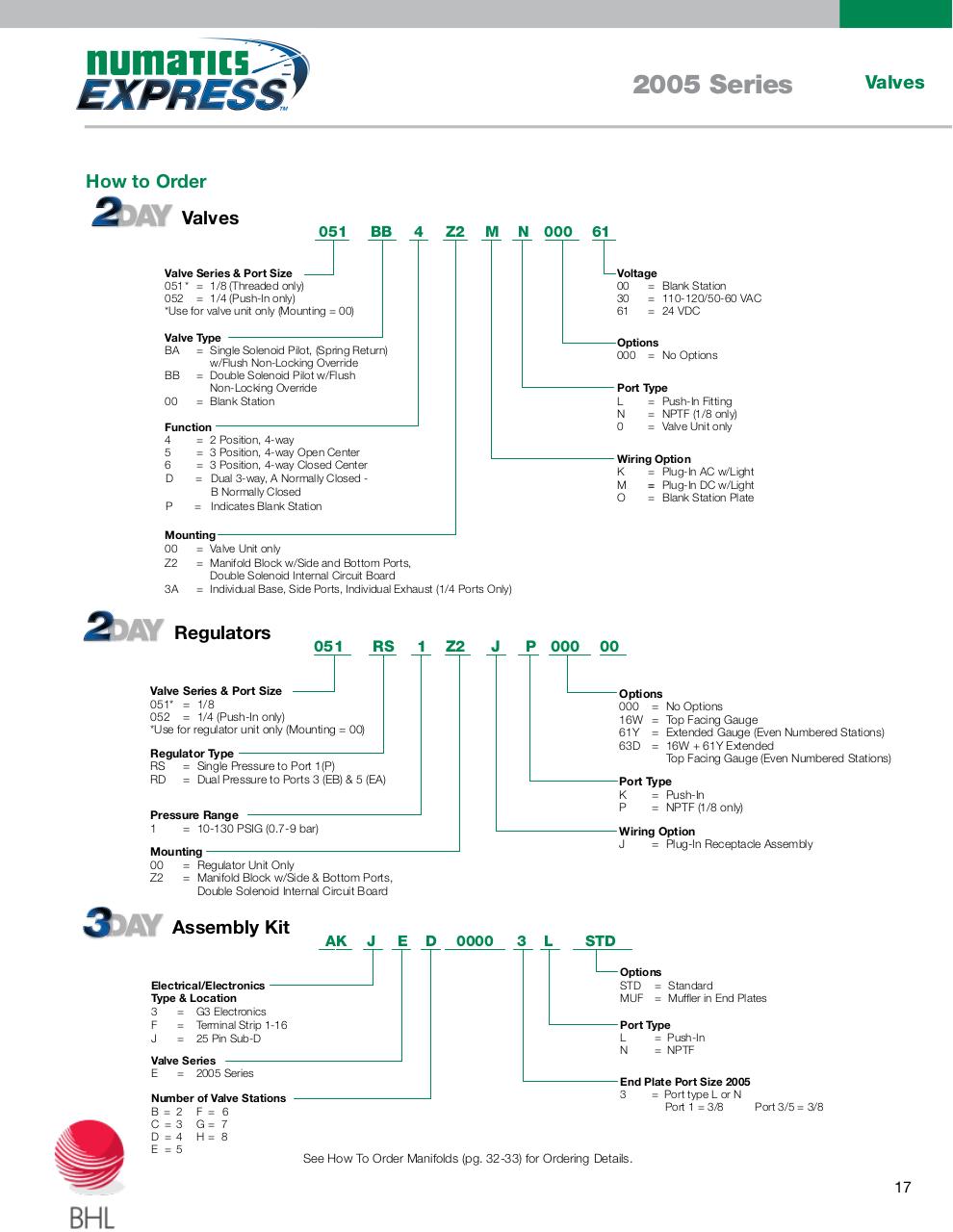

2005 Series

Valves

How to Order
Valves

051

BB

4

Z2

M

N 000

61

Valve Series & Port Size
051 * = 1/8 (Threaded only)
052 = 1/4 (Push-In only)
*Use for valve unit only (Mounting = 00)

Voltage
00
= Blank Station
30
= 110-120/50-60 VAC
61
= 24 VDC

Valve Type
BA = Single Solenoid Pilot, (Spring Return)
w/Flush Non-Locking Override
BB = Double Solenoid Pilot w/Flush
Non-Locking Override
00
= Blank Station

Options
000 = No Options
Port Type
L
= Push-In Fitting
N
= NPTF (1/8 only)
0
= Valve Unit only

Function
4
= 2 Position, 4-way
5
= 3 Position, 4-way Open Center
6
= 3 Position, 4-way Closed Center
D
= Dual 3-way, A Normally Closed B Normally Closed
P
= Indicates Blank Station

Wiring Option
K
= Plug-In AC w/Light
M
= Plug-In DC w/Light
O
= Blank Station Plate

Mounting
00
= Valve Unit only
Z2
= Manifold Block w/Side and Bottom Ports,
Double Solenoid Internal Circuit Board
3A
= Individual Base, Side Ports, Individual Exhaust (1/4 Ports Only)

Regulators

051

RS

1

Z2

J

P 000

00

Valve Series & Port Size
051* = 1/8
052 = 1/4 (Push-In only)
*Use for regulator unit only (Mounting = 00)

Options
000 = No Options
16W = Top Facing Gauge
61Y = Extended Gauge (Even Numbered Stations)
63D = 16W + 61Y Extended
Top Facing Gauge (Even Numbered Stations)

Regulator Type
RS = Single Pressure to Port 1(P)
RD = Dual Pressure to Ports 3 (EB) & 5 (EA)

Port Type
K
= Push-In
P
= NPTF (1/8 only)

Pressure Range
1
= 10-130 PSIG (0.7-9 bar)

Wiring Option
J
= Plug-In Receptacle Assembly

Mounting
00
= Regulator Unit Only
Z2
= Manifold Block w/Side & Bottom Ports,
Double Solenoid Internal Circuit Board

Assembly Kit
Electrical/Electronics
Type & Location
3
= G3 Electronics
F
= Terminal Strip 1-16
J
= 25 Pin Sub-D
Valve Series
E
= 2005 Series
Number of Valve Stations
B = 2 F = 6
C = 3 G= 7
D = 4 H= 8
E = 5

AK

J

E

D

0000

3

L

STD
Options
STD = Standard
MUF = Muffler in End Plates
Port Type
L
= Push-In
N
= NPTF
End Plate Port Size 2005
3
= Port type L or N
Port 1 = 3/8
Port 3/5 = 3/8

3EE(OW4O/RDER-ANIFOLDSPG  FOR/RDERING$ETAILS

For detailed dimensional information and technical specifications, please visit www.numatics.com. Information subject to change without notice.
