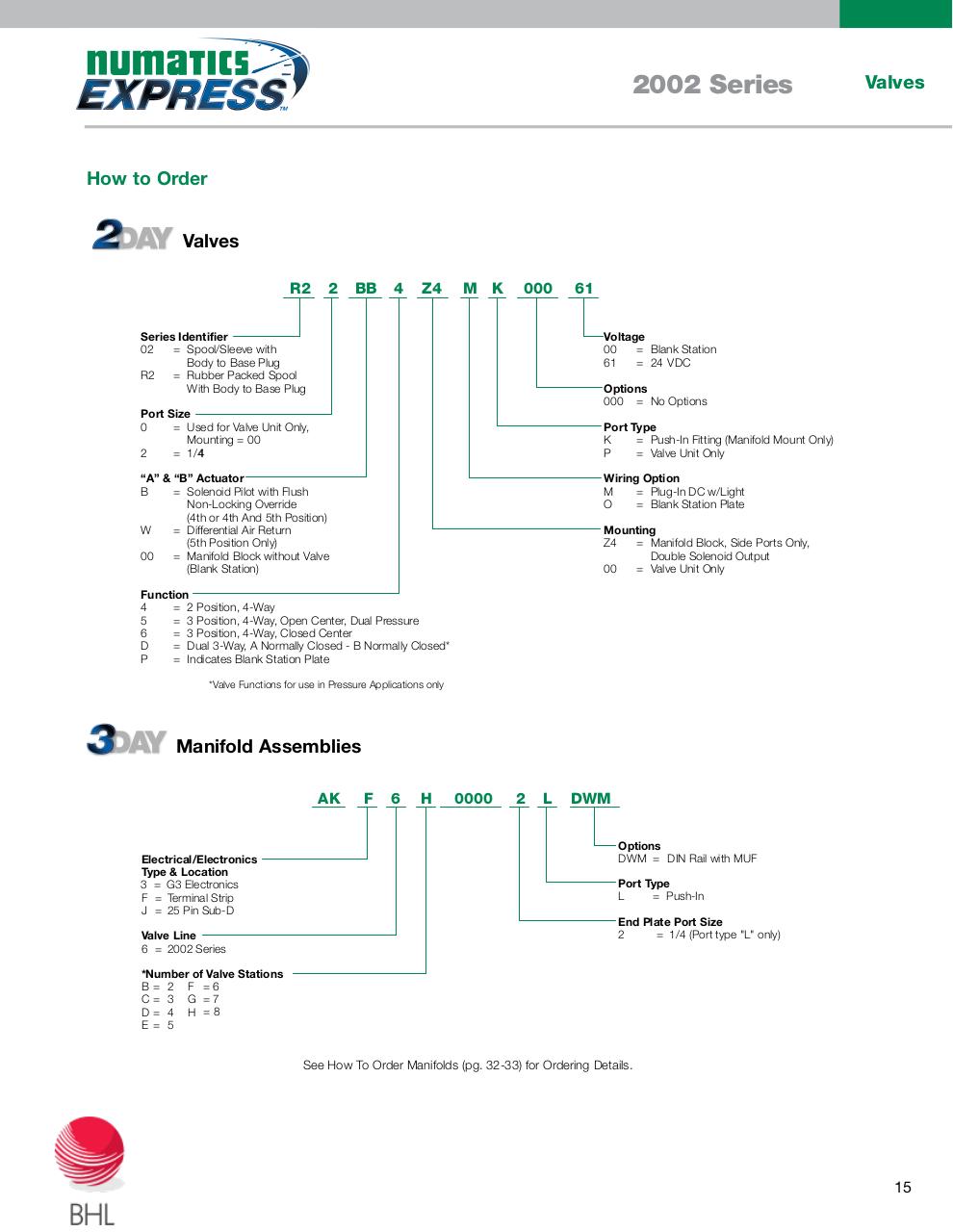

2002 Series

Valves

How to Order
Valves
R2

2

BB

4

Z4

M K

000

61
Voltage
00
= Blank Station
61
= 24 VDC

Series Identifier
02
= Spool/Sleeve with
Body to Base Plug
R2
= Rubber Packed Spool
With Body to Base Plug

Options
000 = No Options

Port Size
0
= Used for Valve Unit Only,
Mounting = 00
2
= 1/4
4

Port Type
K
= Push-In Fitting (Manifold Mount Only)
P
= Valve Unit Only
Wiring Option
M
= Plug-In DC w/Light
O
= Blank Station Plate

“A” & “B” Actuator
B
= Solenoid Pilot with Flush
Non-Locking Override
(4th or 4th And 5th Position)
W
= Differential Air Return
(5th Position Only)
00
= Manifold Block without Valve
(Blank Station)

Mounting
Z4
= Manifold Block, Side Ports Only,
Double Solenoid Output
00
= Valve Unit Only

Function
4
= 2 Position, 4-Way
5
= 3 Position, 4-Way, Open Center, Dual Pressure
6
= 3 Position, 4-Way, Closed Center
D
= Dual 3-Way, A Normally Closed - B Normally Closed*
P
= Indicates Blank Station Plate
*Valve Functions for use in Pressure Applications only

Manifold Assemblies
AK

Electrical/Electronics
Type & Location
3 = G3 Electronics
F = Terminal Strip
J = 25 Pin Sub-D
Valve Line
6 = 2002 Series

F

6

H

0000

2

L

DWM
Options
DWM = DIN Rail with MUF
Port Type
L
= Push-In
End Plate Port Size
2
= 1/4 (Port type "L" only)

*Number of Valve Stations
B = 2 F =6
C= 3 G =7
D = 4 H =8
E = 5

3EE(OW4O/RDER-ANIFOLDSPG  FOR/RDERING$ETAILS

For detailed dimensional information and technical specifications, please visit www.numatics.com. Information subject to change without notice.
