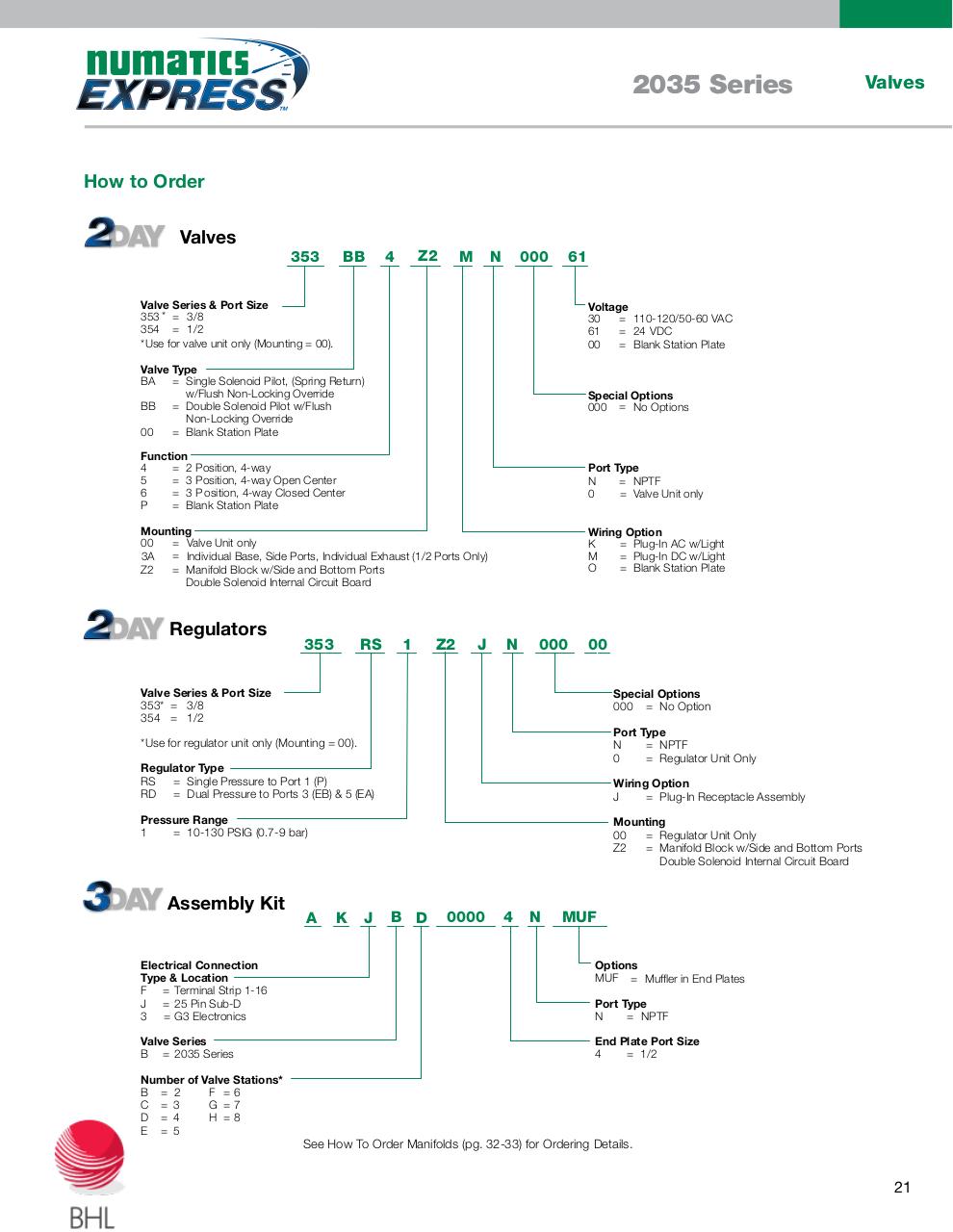

2035 Series

Valves

How to Order
Valves

353

BB

Z2

4

M

N

000

61

Valve Series & Port Size
353 * = 3/8
354 = 1/2
*Use for valve unit only (Mounting = 00).

Voltage
30
= 110-120/50-60 VAC
61
= 24 VDC
00
= Blank Station Plate

Valve Type
BA = Single Solenoid Pilot, (Spring Return)
w/Flush Non-Locking Override
BB = Double Solenoid Pilot w/Flush
Non-Locking Override
00
= Blank Station Plate

Special Options
000 = No Options

Function
4
= 2 Position, 4-way
5
= 3 Position, 4-way Open Center
6
= 3 P osition, 4-way Closed Center
P
= Blank Station Plate

Port Type
N
= NPTF
0
= Valve Unit only

Mounting
00
= Valve Unit only
= Individual Base, Side Ports, Individual Exhaust (1/2 Ports Only)
3A
Z2
= Manifold Block w/Side and Bottom Ports
Double Solenoid Internal Circuit Board

Regulators

353

RS

1

Z2

J

Wiring Option
K
= Plug-In AC w/Light
M
= Plug-In DC w/Light
O
= Blank Station Plate

N

000

00

Valve Series & Port Size
353* = 3/8
354 = 1/2

Special Options
000 = No Option

*Use for regulator unit only (Mounting = 00).

Port Type
N
= NPTF
0
= Regulator Unit Only

Regulator Type
RS = Single Pressure to Port 1 (P)
RD = Dual Pressure to Ports 3 (EB) & 5 (EA)

Wiring Option
J
= Plug-In Receptacle Assembly

Pressure Range
1
= 10-130 PSIG (0.7-9 bar)

Assembly Kit

A

Mounting
00
= Regulator Unit Only
Z2
= Manifold Block w/Side and Bottom Ports
Double Solenoid Internal Circuit Board

K

J

B D

0000

4

N

MUF

Electrical Connection
Type & Location
F = Terminal Strip 1-16
J = 25 Pin Sub-D
3 = G3 Electronics

Options
MUF = Muffler in End Plates

Valve Series
B = 2035 Series

End Plate Port Size
4
= 1/2

Number of Valve Stations*
B = 2
F =6
C = 3
G =7
D = 4
H =8
E = 5

Port Type
N
= NPTF

3EE(OW4O/RDER-ANIFOLDSPG  FOR/RDERING$ETAILS

For detailed dimensional information and technical specifications, please visit www.numatics.com. Information subject to change without notice.
