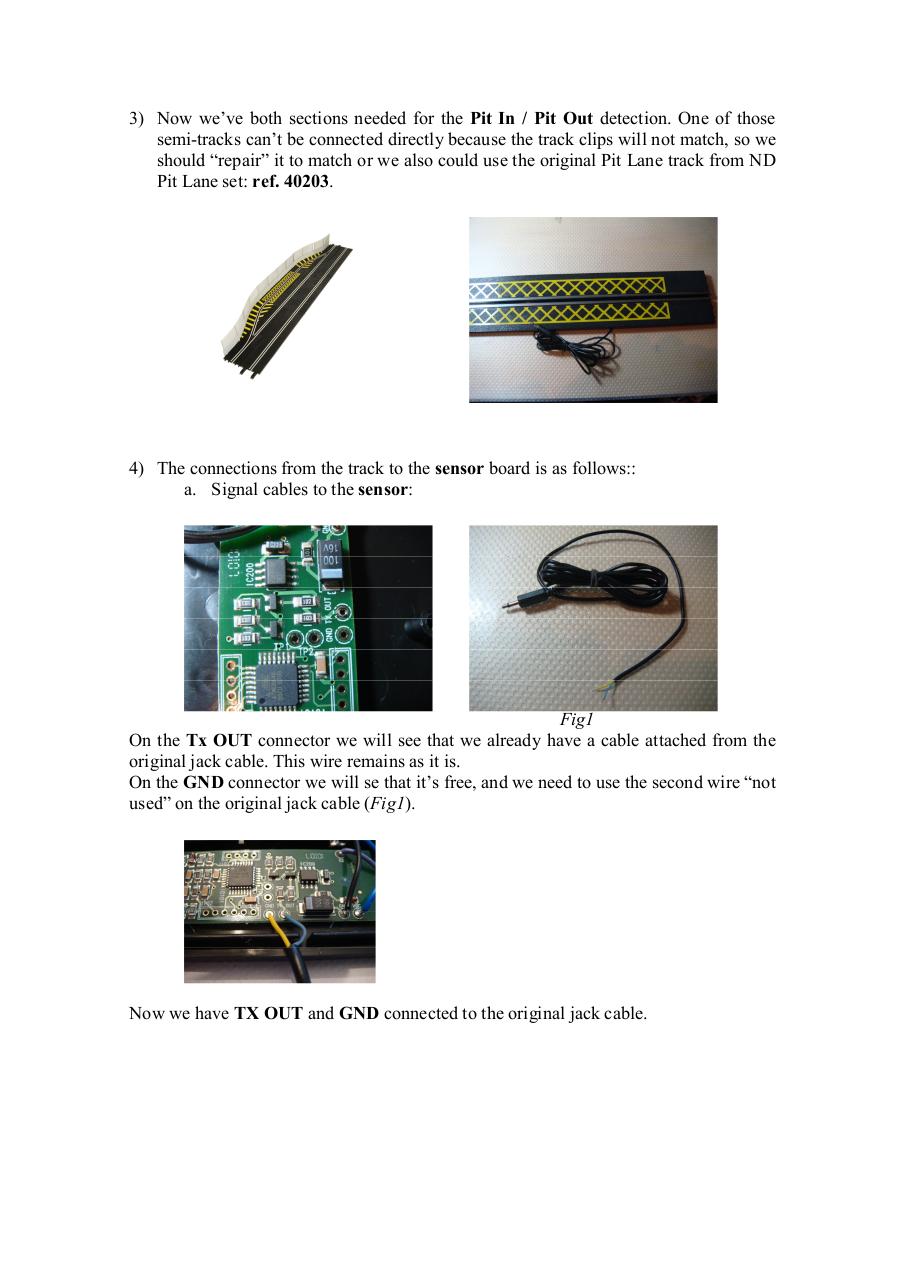

3) Now we’ve both sections needed for the Pit In / Pit Out detection. One of those
semi-tracks can’t be connected directly because the track clips will not match, so we
should “repair” it to match or we also could use the original Pit Lane track from ND
Pit Lane set: ref. 40203.

4) The connections from the track to the sensor board is as follows::
a. Signal cables to the sensor:

Fig1

Fig1
On the Tx OUT connector we will see that we already have a cable attached from the
original jack cable. This wire remains as it is.
On the GND connector we will se that it’s free, and we need to use the second wire “not
used” on the original jack cable (Fig1).

Now we have TX OUT and GND connected to the original jack cable.
