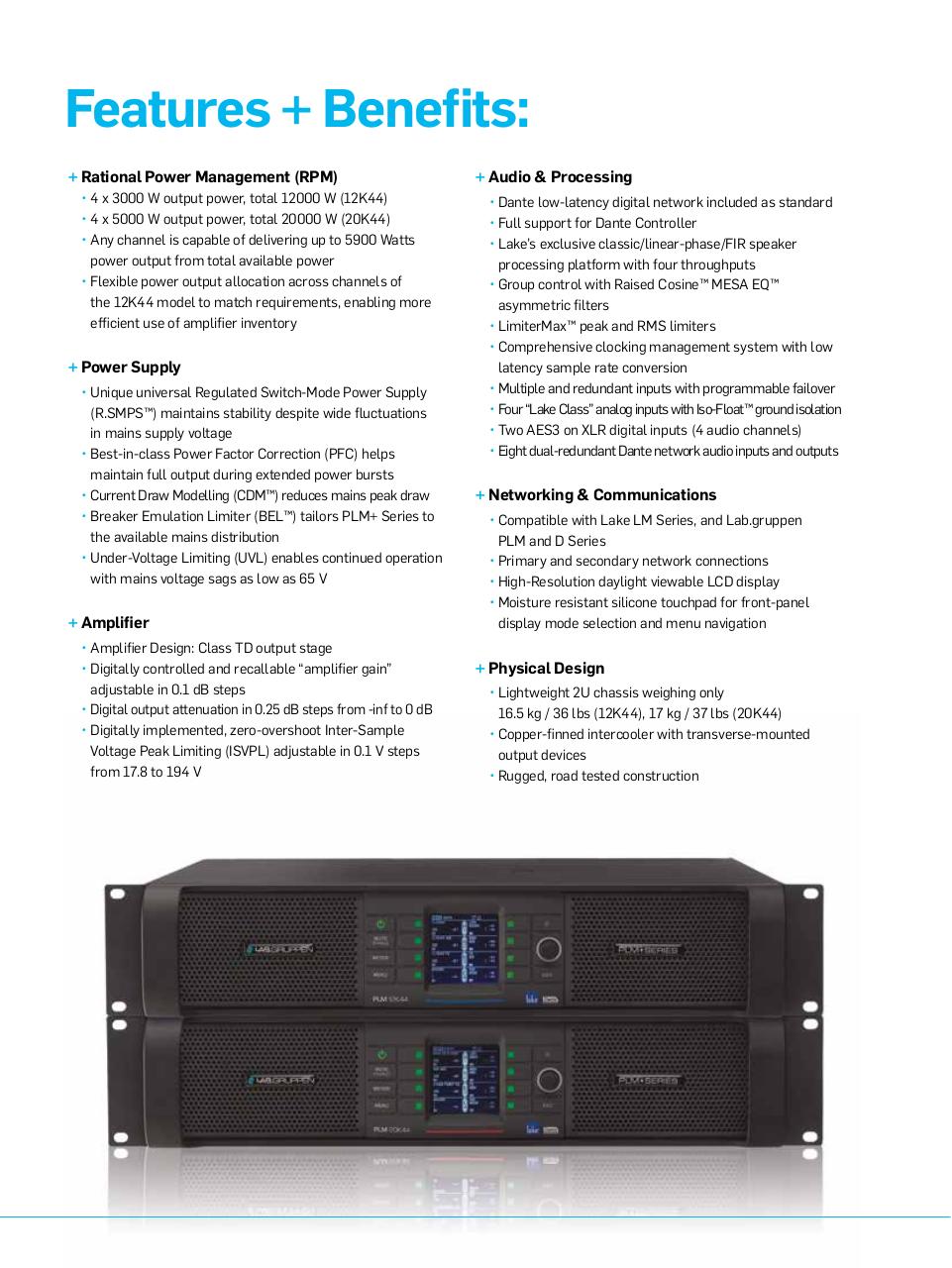

Features + Benefits:
+ Rational Power Management (RPM)
• 4 x 3000 W output power, total 12000 W (12K44)
• 4 x 5000 W output power, total 20000 W (20K44)
• Any channel is capable of delivering up to 5900 Watts
power output from total available power
• Flexible power output allocation across channels of
the 12K44 model to match requirements, enabling more
efficient use of amplifier inventory

+ Power Supply
• Unique universal Regulated Switch-Mode Power Supply
(R.SMPS™) maintains stability despite wide fluctuations
in mains supply voltage
• Best-in-class Power Factor Correction (PFC) helps
maintain full output during extended power bursts
• Current Draw Modelling (CDM™) reduces mains peak draw
• Breaker Emulation Limiter (BEL™) tailors PLM+ Series to
the available mains distribution
• Under-Voltage Limiting (UVL) enables continued operation
with mains voltage sags as low as 65 V

+ Amplifier
• Amplifier Design: Class TD output stage
• Digitally controlled and recallable “amplifier gain”
adjustable in 0.1 dB steps
• Digital output attenuation in 0.25 dB steps from -inf to 0 dB
• Digitally implemented, zero-overshoot Inter-Sample
Voltage Peak Limiting (ISVPL) adjustable in 0.1 V steps
from 17.8 to 194 V

+ Audio & Processing
• Dante low-latency digital network included as standard
• Full support for Dante Controller
• Lake’s exclusive classic/linear-phase/FIR speaker
processing platform with four throughputs
• Group control with Raised Cosine™ MESA EQ™
asymmetric filters
• LimiterMax™ peak and RMS limiters
• Comprehensive clocking management system with low
latency sample rate conversion
• Multiple and redundant inputs with programmable failover
• Four “Lake Class” analog inputs with Iso-Float™ ground isolation
• Two AES3 on XLR digital inputs (4 audio channels)
• Eight dual-redundant Dante network audio inputs and outputs

+ Networking & Communications
• Compatible with Lake LM Series, and Lab.gruppen
PLM and D Series
• Primary and secondary network connections
• High-Resolution daylight viewable LCD display
• Moisture resistant silicone touchpad for front-panel
display mode selection and menu navigation

+ Physical Design
• Lightweight 2U chassis weighing only
16.5 kg / 36 lbs (12K44), 17 kg / 37 lbs (20K44)
• Copper-finned intercooler with transverse-mounted
output devices
• Rugged, road tested construction
