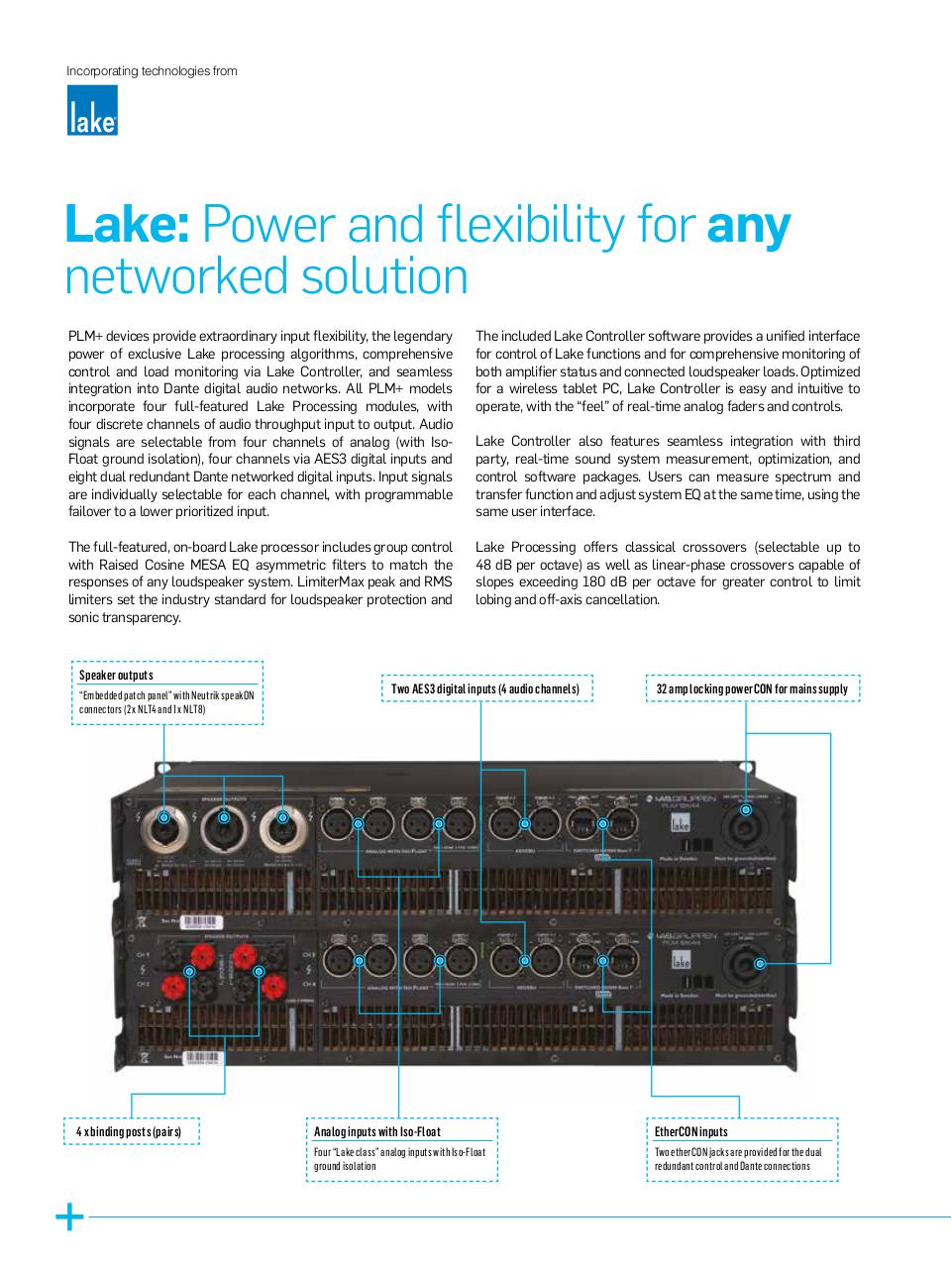

Incorporating technologies from

Lake: Power and flexibility for any
networked solution
PLM+ devices provide extraordinary input flexibility, the legendary
power of exclusive Lake processing algorithms, comprehensive
control and load monitoring via Lake Controller, and seamless
integration into Dante digital audio networks. All PLM+ models
incorporate four full-featured Lake Processing modules, with
four discrete channels of audio throughput input to output. Audio
signals are selectable from four channels of analog (with IsoFloat ground isolation), four channels via AES3 digital inputs and
eight dual redundant Dante networked digital inputs. Input signals
are individually selectable for each channel, with programmable
failover to a lower prioritized input.

The included Lake Controller software provides a unified interface
for control of Lake functions and for comprehensive monitoring of
both amplifier status and connected loudspeaker loads. Optimized
for a wireless tablet PC, Lake Controller is easy and intuitive to
operate, with the “feel” of real-time analog faders and controls.

The full-featured, on-board Lake processor includes group control
with Raised Cosine MESA EQ asymmetric filters to match the
responses of any loudspeaker system. LimiterMax peak and RMS
limiters set the industry standard for loudspeaker protection and
sonic transparency.

Lake Processing offers classical crossovers (selectable up to
48 dB per octave) as well as linear-phase crossovers capable of
slopes exceeding 180 dB per octave for greater control to limit
lobing and off-axis cancellation.

Speaker outputs
“Embedded patch panel” with Neutrik speakON
connectors (2 x NLT4 and 1 x NLT8)

4 x binding posts (pairs)

Lake Controller also features seamless integration with third
party, real-time sound system measurement, optimization, and
control software packages. Users can measure spectrum and
transfer function and adjust system EQ at the same time, using the
same user interface.

Two AES3 digital inputs (4 audio channels)

32 amp locking powerCON for mains supply

Analog inputs with Iso-Float

EtherCON inputs

Four “Lake class” analog inputs with Iso-Float
ground isolation

Two etherCON jacks are provided for the dual
redundant control and Dante connections

+
