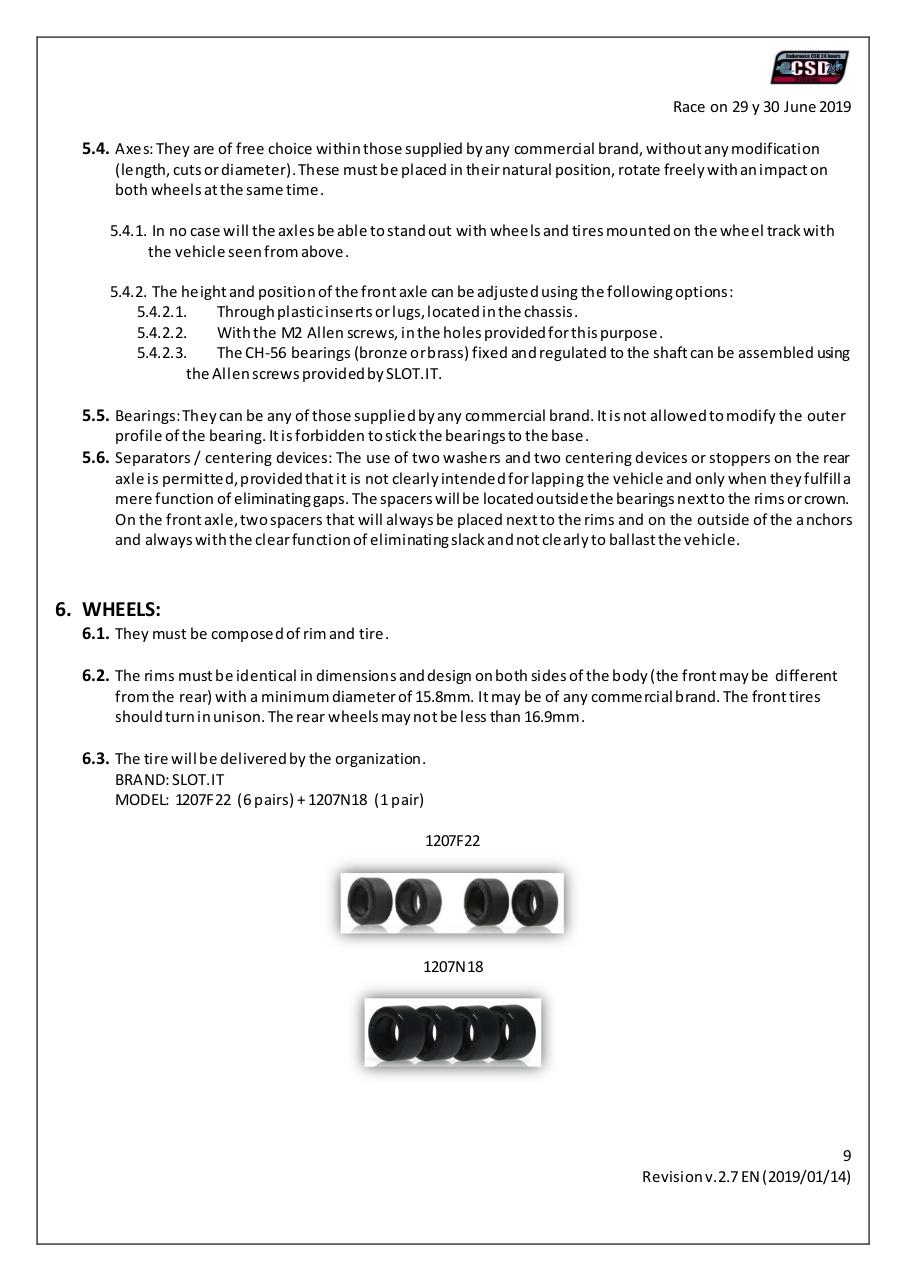

Race on 29 y 30 June 2019

5.4. Axes: They are of free choice within those supplied by any commercial brand, without any modification
(length, cuts or diameter). These must be placed in their natural position, rotate freely with an impact on
both wheels at the same time.
5.4.1. In no case will the axles be able to stand out with wheels and tires mounted on the wheel track with
the vehicle seen from above.
5.4.2. The height and position of the front axle can be adjusted using the following options :
5.4.2.1.
Through plastic inserts or lugs, located in the chassis.
5.4.2.2.
With the M2 Allen screws, in the holes provided for this purpose.
5.4.2.3.
The CH-56 bearings (bronze or brass) fixed and regulated to the shaft can be assembled using
the Allen screws provided by SLOT.IT.

5.5. Bearings: They can be any of those supplied by any commercial brand. It is not allowed to modify the outer
profile of the bearing. It is forbidden to stick the bearings to the base .
5.6. Separators / centering devices: The use of two washers and two centering devices or stoppers on the rear
axle is permitted, provided that it is not clearly intended for lapping the vehicle and only when they fulfill a
mere function of eliminating gaps. The spacers will be located outside the bearings next to the rims or crown.
On the front axle, two spacers that will always be placed next to the rims and on the outside of the anchors
and always with the clear function of eliminating slack and not clearly to ballast the vehicle.

6. WHEELS:
6.1. They must be composed of rim and tire.
6.2. The rims must be identical in dimensions and design on both sides of the body (the front may be different
from the rear) with a minimum diameter of 15.8mm. It may be of any commercial brand. The front tires
should turn in unison. The rear wheels may not be less than 16.9mm.

6.3. The tire will be delivered by the organization.
BRAND: SLOT.IT
MODEL: 1207F22 (6 pairs) + 1207N18 (1 pair)
1207F22

1207N18

9
Revision v.2.7 EN (2019/01/14)
