Cylinders
(Actuators)

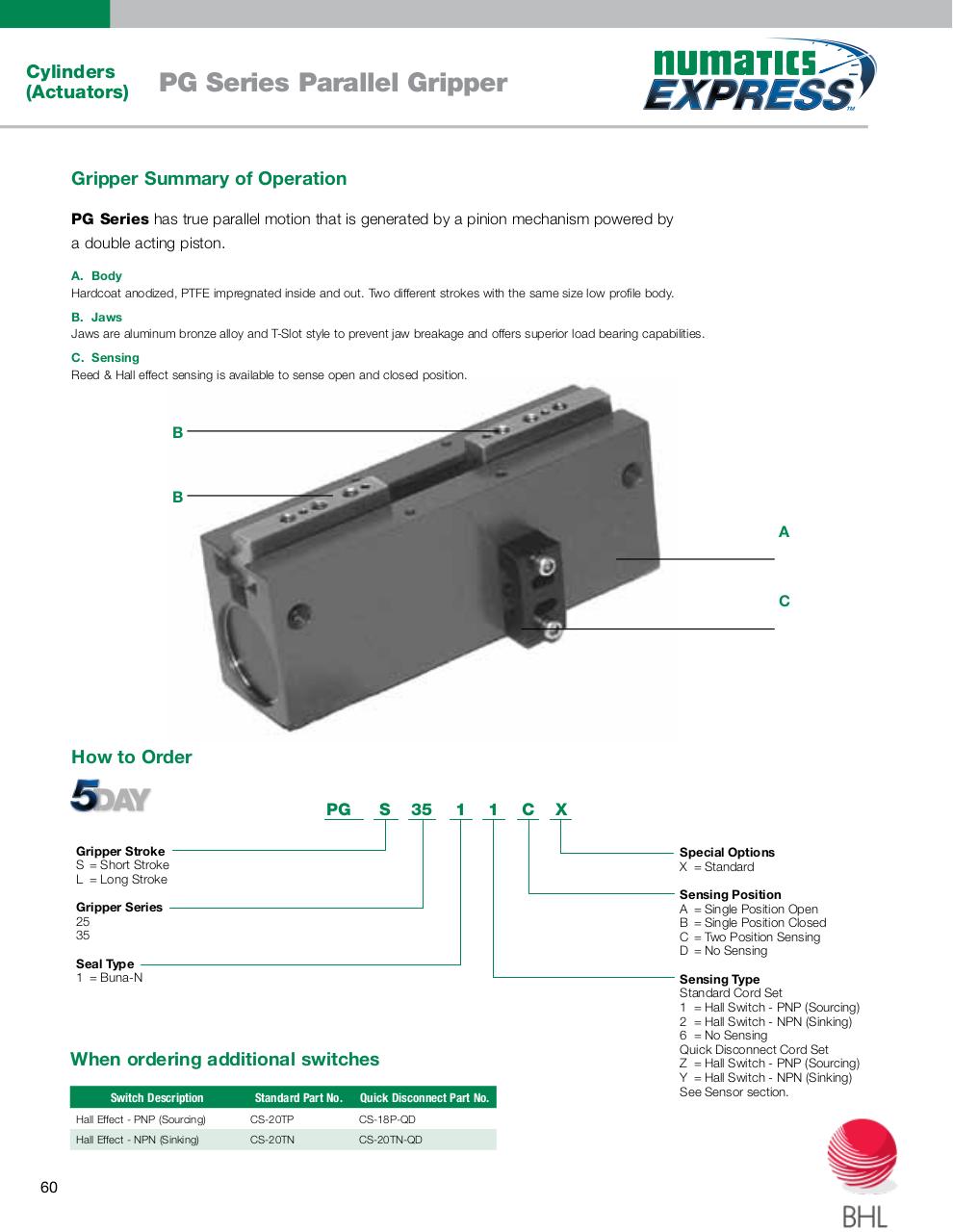

PG Series Parallel Gripper

Gripper Summary of Operation
PG SeriesHASTRUEPARALLELMOTIONTHATISGENERATEDBYAPINIONMECHANISMPOWEREDBY
a double acting piston.
A. Body
(ARDCOATANODIZED04&%IMPREGNATEDINSIDEANDOUT4WODIFFERENTSTROKESWITHTHESAMESIZELOWPROFILEBODY
B. Jaws
*AWSAREALUMINUMBRONZEALLOYAND4 3LOTSTYLETOPREVENTJAWBREAKAGEANDOFFERSSUPERIORLOADBEARINGCAPABILITIES
C. Sensing
2EED(ALLEFFECTSENSINGISAVAILABLETOSENSEOPENANDCLOSEDPOSITION

B

B
A

C

How to Order
PG

S

35

1

1

X

Gripper Stroke
S = Short Stroke
L = Long Stroke

Special Options
X = Standard

Gripper Series
25
35

Sensing Position
A = Single Position Open
B = Single Position Closed
C = Two Position Sensing
D = No Sensing

Seal Type
1 = Buna-N

When ordering additional switches
Switch Description

60

C

Standard Part No.

Quick Disconnect Part No.

(ALL%FFECT 0.03OURCING

#3 40

#3 0 1$

(ALL%FFECT .0.3INKING

#3 4.

#3 4. 1$

Sensing Type
Standard Cord Set
1 = Hall Switch - PNP (Sourcing)
2 = Hall Switch - NPN (Sinking)
6 = No Sensing
Quick Disconnect Cord Set
Z = Hall Switch - PNP (Sourcing)
Y = Hall Switch - NPN (Sinking)
See Sensor section.

For detailed dimensional information and technical specifications, please visit www.numatics.com. Information subject to change without notice.
