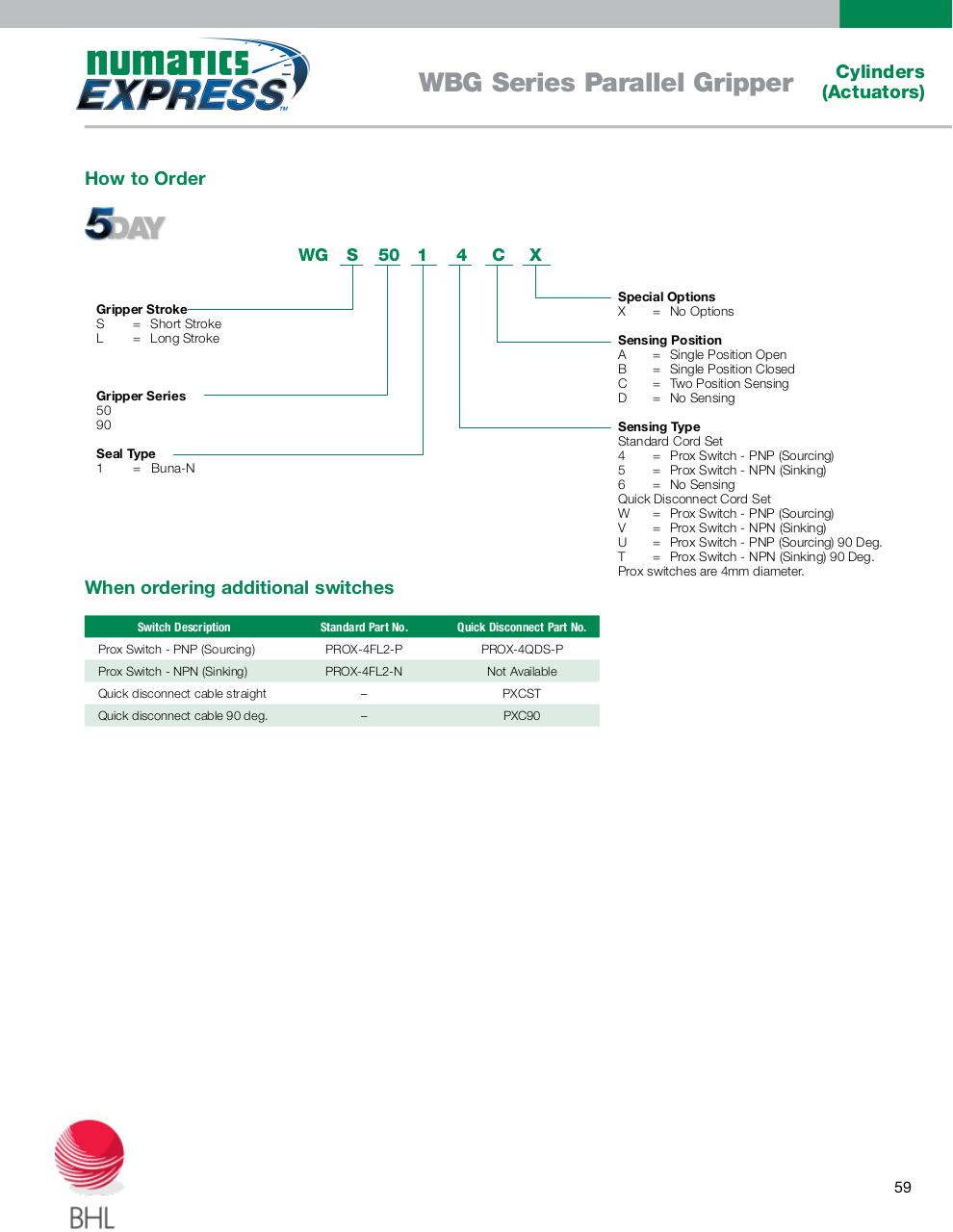

WBG Series Parallel Gripper

Cylinders
(Actuators)

How to Order

WG

S

50 1

4

C

X
Special Options
X
= No Options

Gripper Stroke
S
= Short Stroke
L
= Long Stroke

Sensing Position
A
= Single Position Open
B
= Single Position Closed
C
= Two Position Sensing
D
= No Sensing

Gripper Series
50
90

Sensing Type
Standard Cord Set
4
= Prox Switch - PNP (Sourcing)
5
= Prox Switch - NPN (Sinking)
6
= No Sensing
Quick Disconnect Cord Set
W
= Prox Switch - PNP (Sourcing)
V
= Prox Switch - NPN (Sinking)
U
= Prox Switch - PNP (Sourcing) 90 Deg.
T
= Prox Switch - NPN (Sinking) 90 Deg.
Prox switches are 4mm diameter.

Seal Type
1
= Buna-N

When ordering additional switches
Switch Description

Standard Part No.

Quick Disconnect Part No.

0ROX3WITCH 0.03OURCING

02/8 &, 0

02/8 1$3 0

0ROX3WITCH .0.3INKING

02/8 &, .

Not Available

1UICKDISCONNECTCABLESTRAIGHT

–

08#34

1UICKDISCONNECTCABLEDEG

–

08#

For detailed dimensional information and technical specifications, please visit www.numatics.com. Information subject to change without notice.

59
