Cylinders
(Actuators)

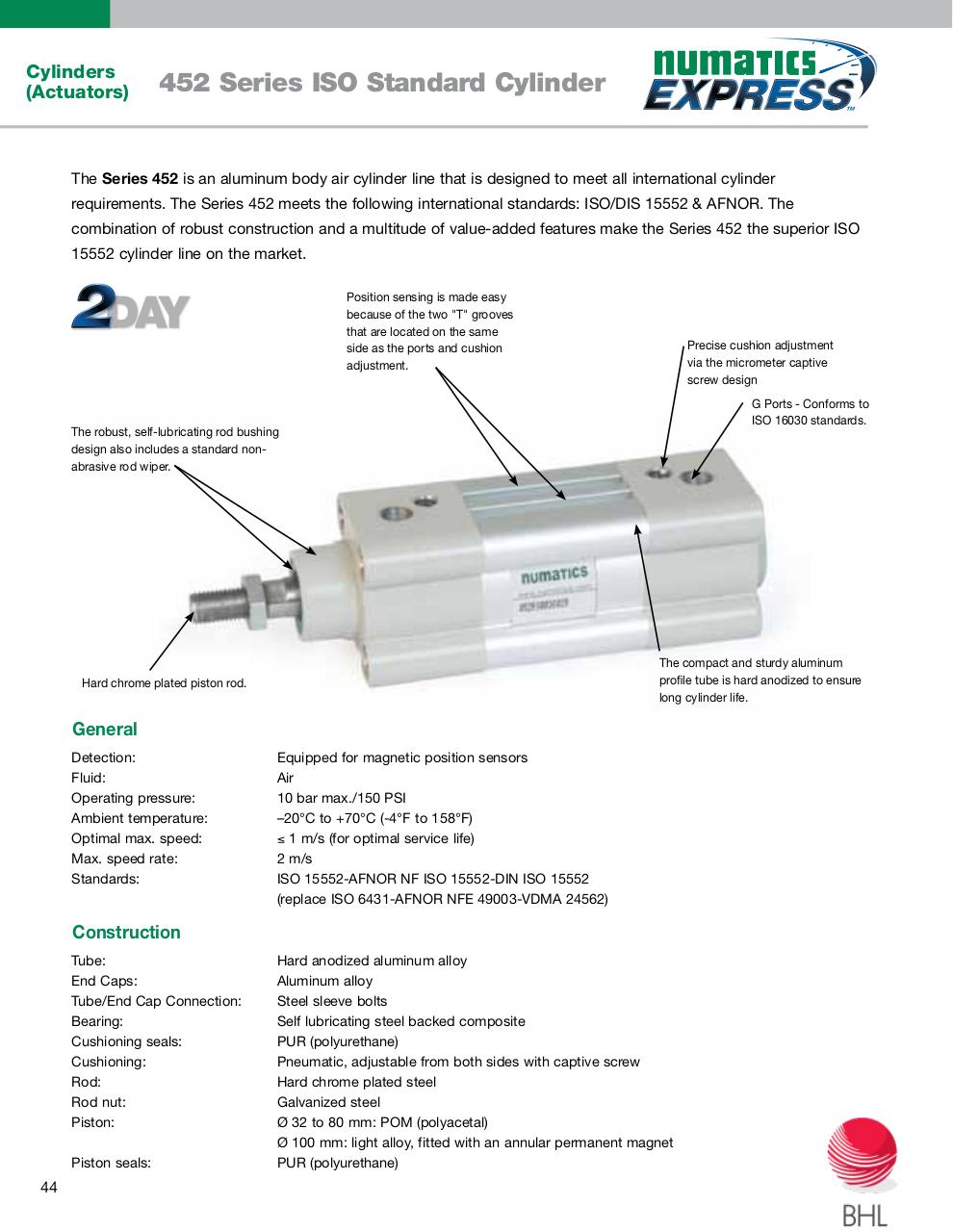

452 Series ISO Standard Cylinder

The Series 452 is an aluminum body air cylinder line that is designed to meet all international cylinder
requirements. The Series 452 meets the following international standards: ISO/DIS 15552 & AFNOR. The
combination of robust construction and a multitude of value-added features make the Series 452 the superior ISO
15552 cylinder line on the market.
Position sensing is made easy
because of the two "T" grooves
that are located on the same
side as the ports and cushion
adjustment.

Precise cushion adjustment
via the micrometer captive
screw design
G Ports - Conforms to
ISO 16030 standards.

The robust, self-lubricating rod bushing
design also includes a standard nonabrasive rod wiper.

The compact and sturdy aluminum
profile tube is hard anodized to ensure
long cylinder life.

Hard chrome plated piston rod.

General
Detection:
Fluid:
Operating pressure:
Ambient temperature:
Optimal max. speed:
Max. speed rate:
Standards:

Equipped for magnetic position sensors
Air
10 bar max./150 PSI
–20°C to +70°C (-4°F to 158°F)
1 m/s (for optimal service life)
2 m/s
ISO 15552-AFNOR NF ISO 15552-DIN ISO 15552
(replace ISO 6431-AFNOR NFE 49003-VDMA 24562)

Construction
Tube:
End Caps:
Tube/End Cap Connection:
Bearing:
Cushioning seals:
Cushioning:
Rod:
Rod nut:
Piston:
Piston seals:

44

Hard anodized aluminum alloy
Aluminum alloy
Steel sleeve bolts
Self lubricating steel backed composite
PUR (polyurethane)
Pneumatic, adjustable from both sides with captive screw
Hard chrome plated steel
Galvanized steel
Ø 32 to 80 mm: POM (polyacetal)
Ø 100 mm: light alloy, fitted with an annular permanent magnet
PUR (polyurethane)

For detailed dimensional information and technical specifications, please visit www.numatics.com. Information subject to change without notice.
