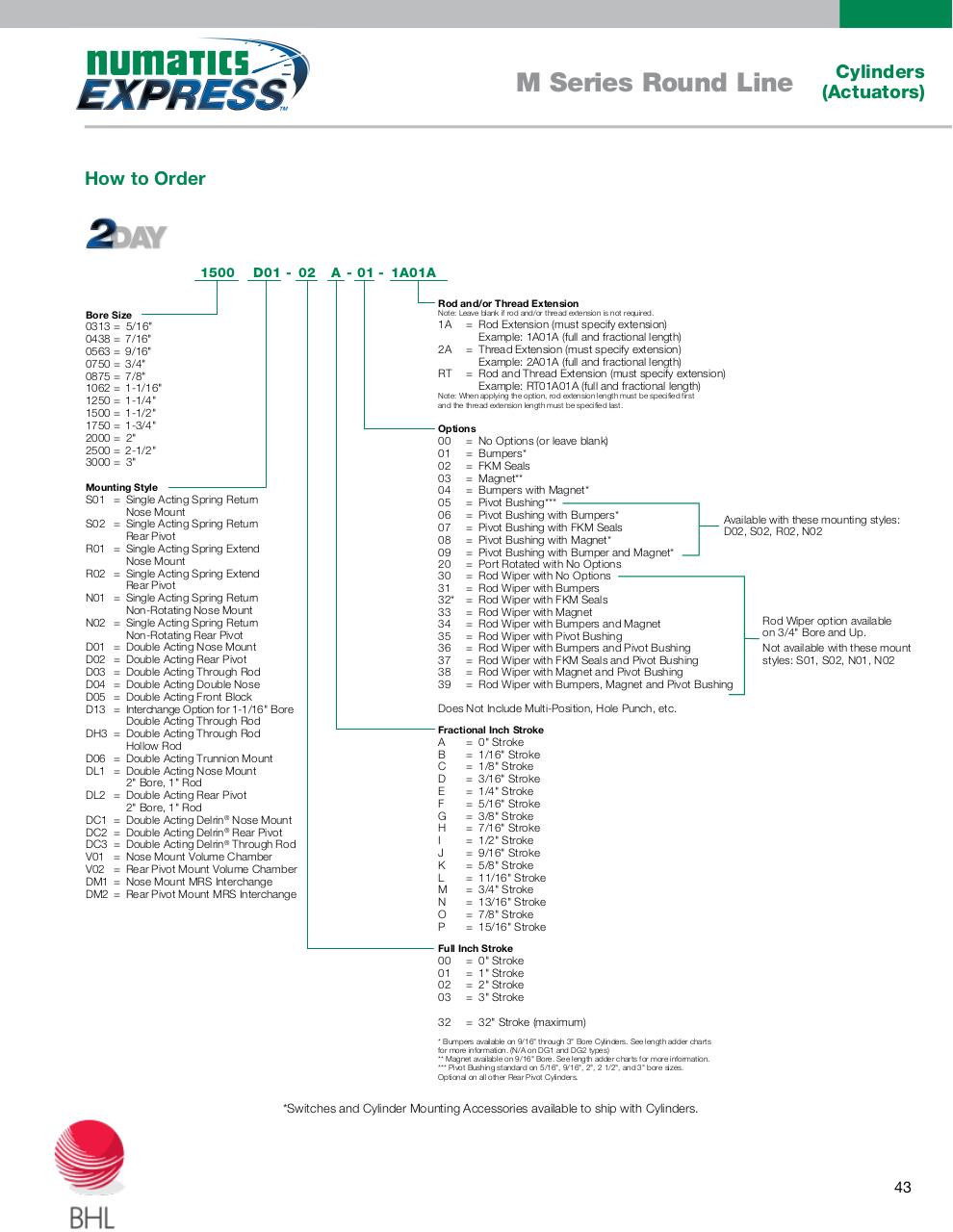

M Series Round Line

Cylinders
(Actuators)

How to Order

1500

D01 - 02

Rod and/or Thread Extension

Bore Size

0313 =
0438 =
0563 =
0750 =
0875 =
1062 =
1250 =
1500 =
1750 =
2000 =
2500 =
3000 =

Note: Leave blank if rod and/or thread extension is not required.

1A

5/16"
7/16"
9/16"
3/4"
7/8"
1-1/16"
1-1/4"
1-1/2"
1-3/4"
2"
2-1/2"
3"

Mounting Style

A - 01 - 1A01A

2A
RT

= Rod Extension (must specify extension)
Example: 1A01A (full and fractional length)
= Thread Extension (must specify extension)
Example: 2A01A (full and fractional length)
= Rod and Thread Extension (must specify extension)
Example: RT01A01A (full and fractional length)

Note: When applying the option, rod extension length must be specified first
and the thread extension length must be specified last.

Options

S01 = Single Acting Spring Return
Nose Mount
S02 = Single Acting Spring Return
Rear Pivot
R01 = Single Acting Spring Extend
Nose Mount
R02 = Single Acting Spring Extend
Rear Pivot
N01 = Single Acting Spring Return
Non-Rotating Nose Mount
N02 = Single Acting Spring Return
Non-Rotating Rear Pivot
D01 = Double Acting Nose Mount
D02 = Double Acting Rear Pivot
D03 = Double Acting Through Rod
D04 = Double Acting Double Nose
D05 = Double Acting Front Block
D13 = Interchange Option for 1-1/16" Bore
Double Acting Through Rod
DH3 = Double Acting Through Rod
Hollow Rod
D06 = Double Acting Trunnion Mount
DL1 = Double Acting Nose Mount
2" Bore, 1" Rod
DL2 = Double Acting Rear Pivot
2" Bore, 1" Rod
DC1 = Double Acting Delrin® Nose Mount
DC2 = Double Acting Delrin® Rear Pivot
DC3 = Double Acting Delrin® Through Rod
V01 = Nose Mount Volume Chamber
V02 = Rear Pivot Mount Volume Chamber
DM1 = Nose Mount MRS Interchange
DM2 = Rear Pivot Mount MRS Interchange

00
01
02
03
04
05
06
07
08
09
20
30
31
32*
33
34
35
36
37
38
39

=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=

No Options (or leave blank)
Bumpers*
FKM Seals
Magnet**
Bumpers with Magnet*
Pivot Bushing***
Pivot Bushing with Bumpers*
Available with these mounting styles:
Pivot Bushing with FKM Seals
D02, S02, R02, N02
Pivot Bushing with Magnet*
Pivot Bushing with Bumper and Magnet*
Port Rotated with No Options
Rod Wiper with No Options
Rod Wiper with Bumpers
Rod Wiper with FKM Seals
Rod Wiper with Magnet
Rod Wiper option available
Rod Wiper with Bumpers and Magnet
on 3/4" Bore and Up.
Rod Wiper with Pivot Bushing
Not available with these mount
Rod Wiper with Bumpers and Pivot Bushing
styles: S01, S02, N01, N02
Rod Wiper with FKM Seals and Pivot Bushing
Rod Wiper with Magnet and Pivot Bushing
Rod Wiper with Bumpers, Magnet and Pivot Bushing

Does Not Include Multi-Position, Hole Punch, etc.
Fractional Inch Stroke

A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P

=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=

0" Stroke
1/16" Stroke
1/8" Stroke
3/16" Stroke
1/4" Stroke
5/16" Stroke
3/8" Stroke
7/16" Stroke
1/2" Stroke
9/16" Stroke
5/8" Stroke
11/16" Stroke
3/4" Stroke
13/16" Stroke
7/8" Stroke
15/16" Stroke

Full Inch Stroke

00
01
02
03

=
=
=
=

0" Stroke
1" Stroke
2" Stroke
3" Stroke

32

= 32" Stroke (maximum)

* Bumpers available on 9/16" through 3" Bore Cylinders. See length adder charts
for more information. (N/A on DG1 and DG2 types)
** Magnet available on 9/16" Bore. See length adder charts for more information.
*** Pivot Bushing standard on 5/16", 9/16", 2", 2 1/2", and 3" bore sizes.
Optional on all other Rear Pivot Cylinders.


3WITCHESAND#YLINDER-OUNTING!CCESSORIESAVAILABLETOSHIPWITH#YLINDERS

For detailed dimensional information and technical specifications, please visit www.numatics.com. Information subject to change without notice.

43
