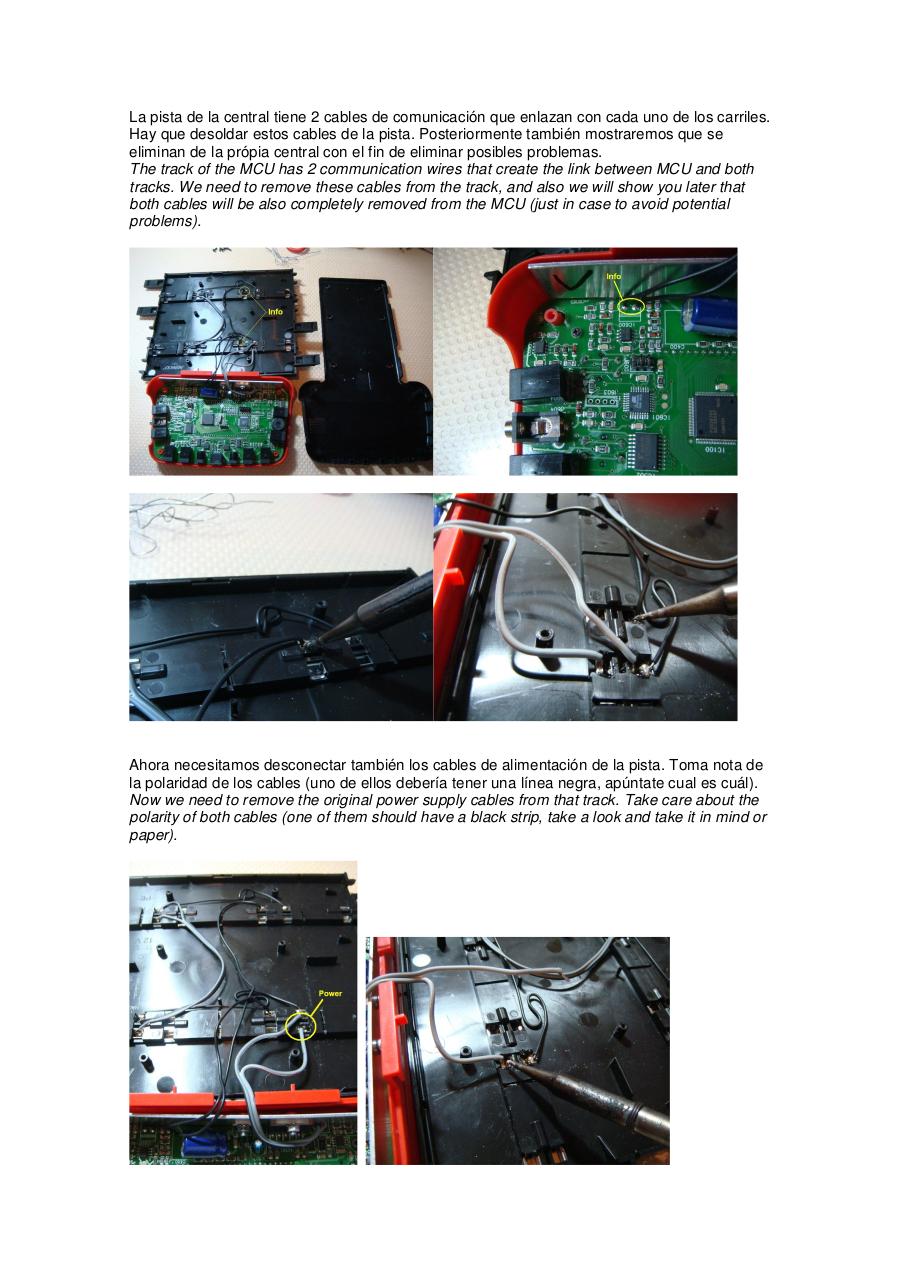

La pista de la central tiene 2 cables de comunicación que enlazan con cada uno de los carriles.
Hay que desoldar estos cables de la pista. Posteriormente también mostraremos que se
eliminan de la própia central con el fin de eliminar posibles problemas.
The track of the MCU has 2 communication wires that create the link between MCU and both
tracks. We need to remove these cables from the track, and also we will show you later that
both cables will be also completely removed from the MCU (just in case to avoid potential
problems).
Ahora necesitamos desconectar también los cables de alimentación de la pista. Toma nota de
la polaridad de los cables (uno de ellos debería tener una línea negra, apúntate cual es cuál).
Now we need to remove the original power supply cables from that track. Take care about the
polarity of both cables (one of them should have a black strip, take a look and take it in mind or
paper).
