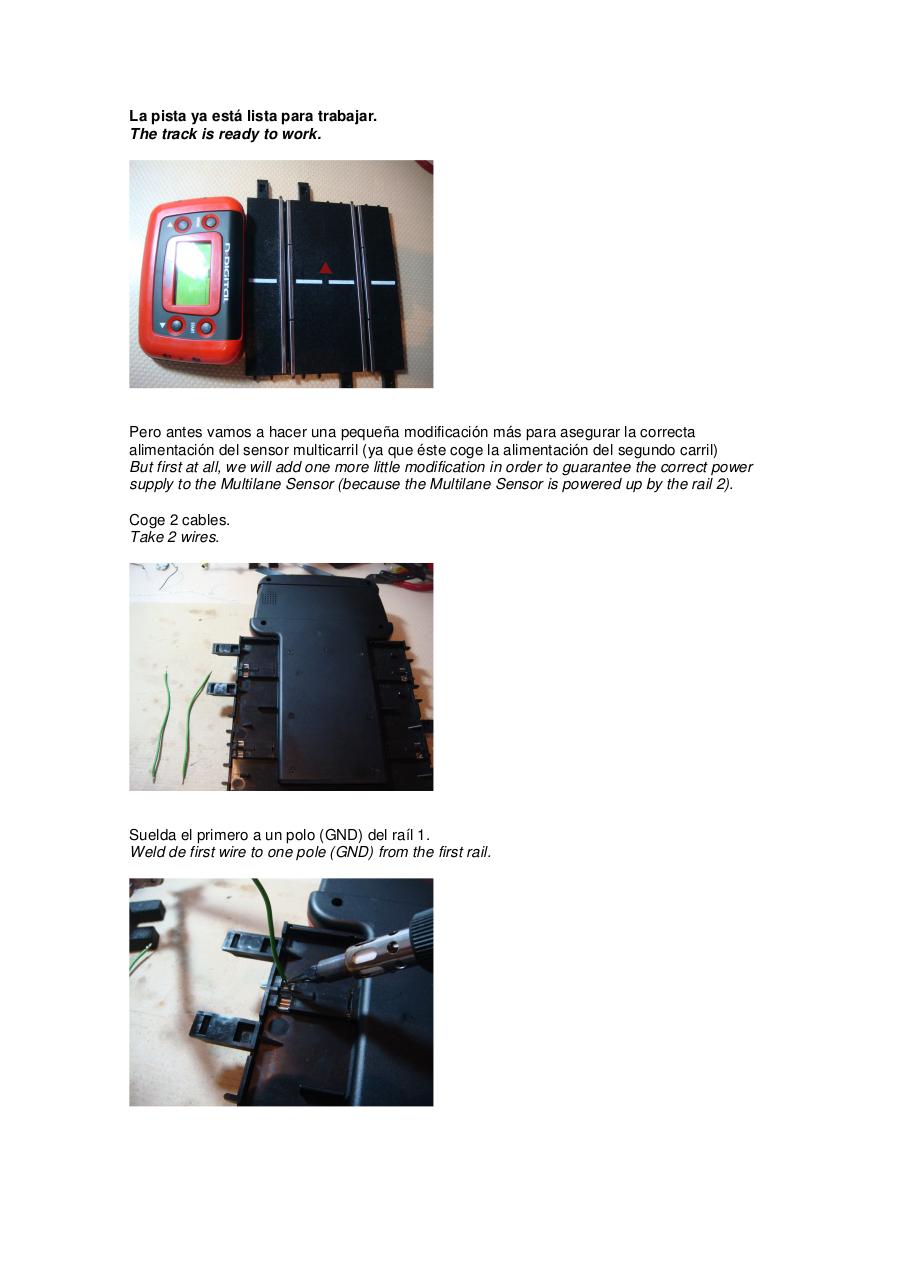

La pista ya está lista para trabajar.
The track is ready to work.

Pero antes vamos a hacer una pequeña modificación más para asegurar la correcta
alimentación del sensor multicarril (ya que éste coge la alimentación del segundo carril)
But first at all, we will add one more little modification in order to guarantee the correct power
supply to the Multilane Sensor (because the Multilane Sensor is powered up by the rail 2).
Coge 2 cables.
Take 2 wires.

Suelda el primero a un polo (GND) del raíl 1.
Weld de first wire to one pole (GND) from the first rail.
