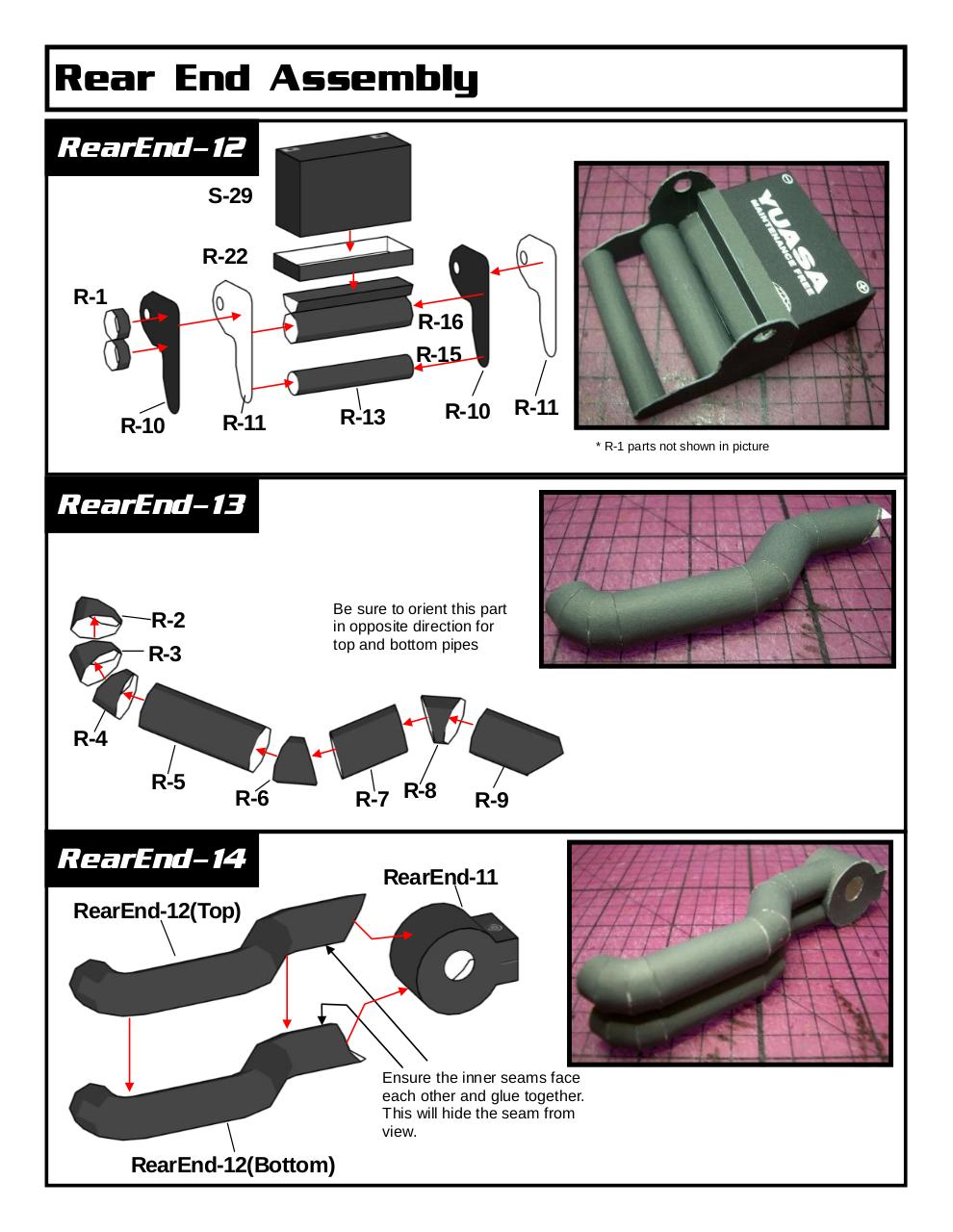

Rear End Assembly
RearEnd-12
S-29
R-22
R-1
R-16
R-15
R-10

R-13

R-11

R-10

R-11
* R-1 parts not shown in picture

RearEnd-13

Be sure to orient this part
in opposite direction for
top and bottom pipes

R-2
R-3

R-4
R-5

R-6

RearEnd-14

R-7 R-8

R-9

RearEnd-11

RearEnd-12(Top)

Ensure the inner seams face
each other and glue together.
This will hide the seam from
view.

RearEnd-12(Bottom)
