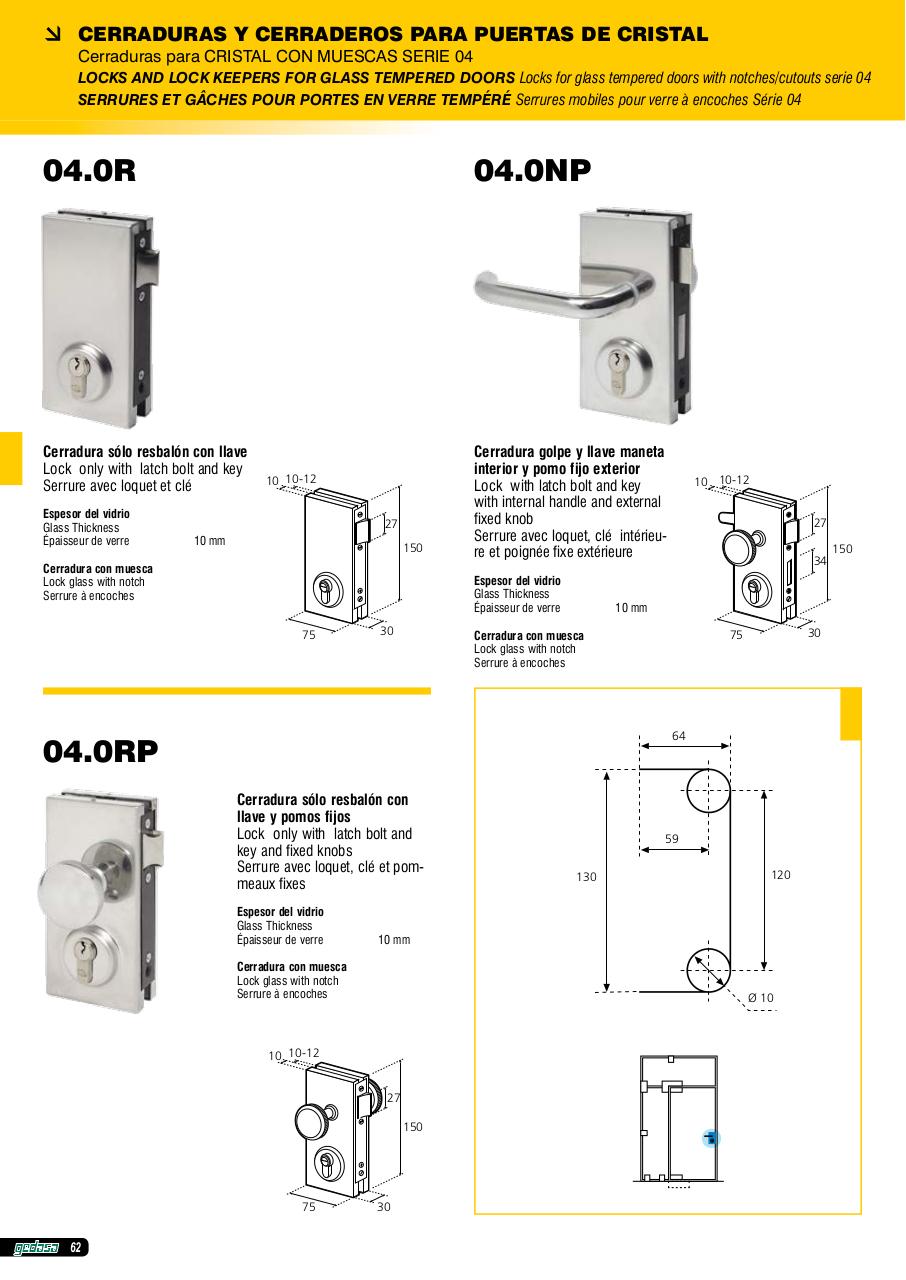

L CERRADURAS Y CERRADEROS PARA PUERTAS DE CRISTAL
Cerraduras para CRISTAL CON MUESCAS SERIE 04
LOCKS AND LOCK KEEPERS FOR GLASS TEMPERED DOORS Locks for glass tempered doors with notches/cutouts serie 04
SERRURES ET GÂCHES POUR PORTES EN VERRE TEMPÉRÉ Serrures mobiles pour verre à encoches Série 04
04.0R
04.0NP
Cerradura sólo resbalón con llave
Lock only with latch bolt and key
Serrure avec loquet et clé
Cerradura golpe y llave maneta
interior y pomo fijo exterior
Lock with latch bolt and key
with internal handle and external
fixed knob
Serrure avec loquet, clé intérieure et poignée fixe extérieure
Espesor del vidrio
Glass Thickness
Épaisseur de verre
10 10-12
27
10 mm
150
Cerradura con muesca
Lock glass with notch
Serrure à encoches
Espesor del vidrio
Glass Thickness
Épaisseur de verre
75
30
27
34
10 mm
30
75
Cerradura con muesca
Lock glass with notch
Serrure à encoches
64
04.0RP
Cerradura sólo resbalón con
llave y pomos fijos
Lock only with latch bolt and
key and fixed knobs
Serrure avec loquet, clé et pommeaux fixes
Espesor del vidrio
Glass Thickness
Épaisseur de verre
130
120
Ø 10
10 10-12
27
150
75
59
10 mm
Cerradura con muesca
Lock glass with notch
Serrure à encoches
62
10 10-12
30
150
