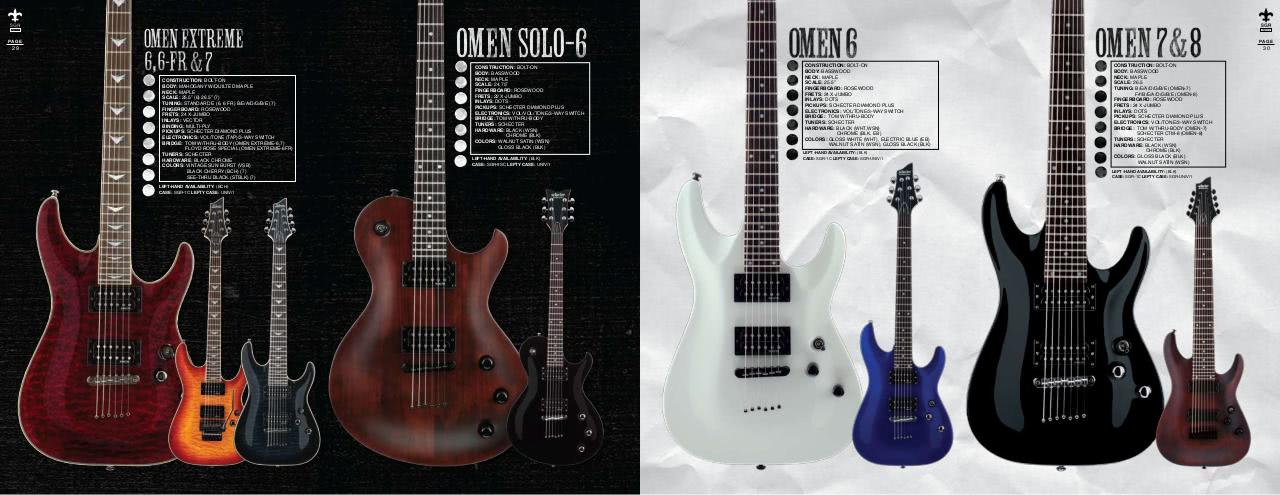

CONSTRUCTION: BOLT-ON
BODY: MAHOGANY W/QUILTED MAPLE
NECK: MAPLE
SCALE: 25.5” (6) 26.5” (7)
TUNING: STANDARD E (6, 6 FR) B/E/A/D/G/B/E (7)
FINGERBOARD: ROSEWOOD
FRETS: 24 X-JUMBO
INLAYS: VECTOR
BINDING: MULTI-PLY
PICKUPS: SCHECTER DIAMOND PLUS
ELECTRONICS: VOL/TONE (TAP)/3-WAY SWITCH
BRIDGE: TOM W/THRU-BODY (OMEN EXTREME-6,7)
FLOYD ROSE SPECIAL (OMEN EXTREME-6FR)
TUNERS: SCHECTER
HARDWARE: BLACK CHROME
COLORS: VINTAGE SUN BURST (VSB)
BLACK CHERRY (BCH) (7)
SEE-THRU BLACK (STBLK) (7)
Left-Hand Availability: (BCH)
Case: SGR-1C Lefty CASE: UNIV/1

Construction: Bolt-On
Body: Basswood
Neck: Maple
Scale: 24.75”
Fingerboard: Rosewood
Frets: 22 X-Jumbo
Inlays: Dots
Pickups: Schecter Diamond Plus
Electronics: Vol/Vol/Tone/3-way switch
Bridge: TOM w/Thru-Body
Tuners: Schecter
Hardware: Black (WSN)
Chrome (BLK)
Colors: Walnut Satin (WSN)
Gloss Black (BLK)
Left-Hand Availability: (BLK)
Case: SGR-9SC Lefty CASE: UNIV/1

CONSTRUCTION: BOLT-ON
BODY: BASSWOOD
NECK: MAPLE
SCALE: 25.5”
FINGERBOARD: ROSEWOOD
FRETS: 24 X-JUMBO
INLAYS: DOTS
PICKUPS: SCHECTER DIAMOND PLUS
ELECTRONICS: VOL/TONE/3-WAY SWITCH
BRIDGE: TOM W/THRU-BODY
TUNERS: SCHECTER
HARDWARE: BLACK (WHT,WSN)
CHROME (BLK, EB)
COLORS: GLOSS WHITE (WHT), ELECTRIC BLUE (EB)
WALNUT SATIN (WSN), GLOSS BLACK (BLK)
LEFT -HAND AVAILABILITY: (BLK)
CASE: SGR-1C LEFTY CASE: SGR-UNIV/1

CONSTRUCTION: BOLT-ON
BODY: BASSWOOD
NECK: MAPLE
SCALE: 26.5
TUNING: B/E/A/D/G/B/E (OMEN-7)
F#/B/E/A/D/G/B/E (OMEN-8)
FINGERBOARD: ROSEWOOD
FRETS: 24 X-JUMBO
INLAYS: DOTS
PICKUPS: SCHECTER DIAMOND PLUS
ELECTRONICS: VOL/TONE/3-WAY SWITCH
BRIDGE: TOM W/THRU-BODY (OMEN-7)
SCHECTER CTM-8 (OMEN-8)
TUNERS: SCHECTER
HARDWARE: BLACK (WSN)
CHROME (BLK)
COLORS: GLOSS BLACK (BLK)
WALNUT SATIN (WSN)
LEFT -HAND AVAILABILITY: (BLK)
CASE: SGR-1C LEFTY CASE: SGR-UNIV/1
