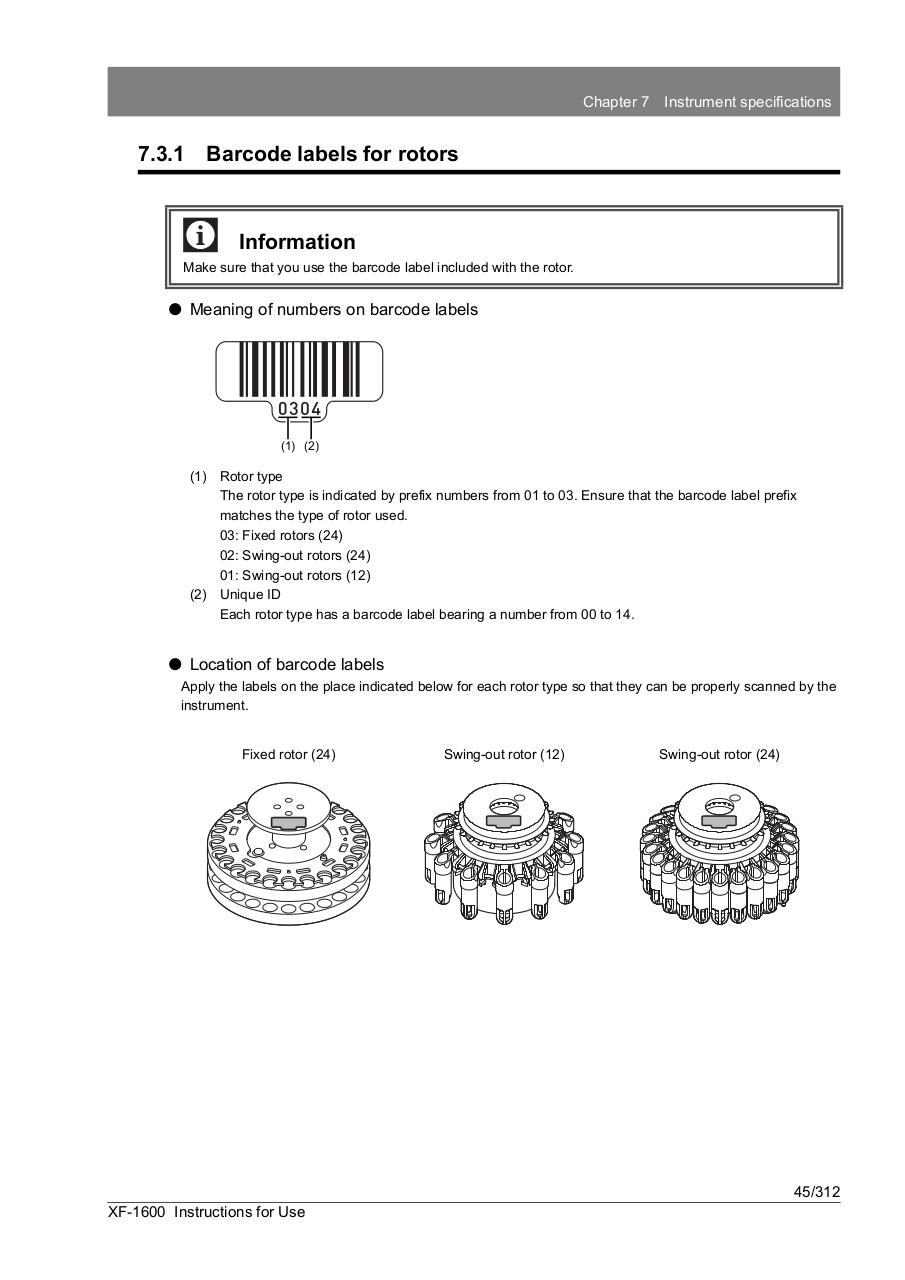

Chapter 7

7.3.1

Instrument specifications

Barcode labels for rotors

Information
Make sure that you use the barcode label included with the rotor.

⏺ Meaning of numbers on barcode labels

(1) (2)

(1) Rotor type
The rotor type is indicated by prefix numbers from 01 to 03. Ensure that the barcode label prefix
matches the type of rotor used.
03: Fixed rotors (24)
02: Swing-out rotors (24)
01: Swing-out rotors (12)
(2) Unique ID
Each rotor type has a barcode label bearing a number from 00 to 14.

⏺ Location of barcode labels
Apply the labels on the place indicated below for each rotor type so that they can be properly scanned by the
instrument.
Fixed rotor (24)

Swing-out rotor (12)

Swing-out rotor (24)

45/312
XF-1600 Instructions for Use
