Chapter 2

2.13

Safety information

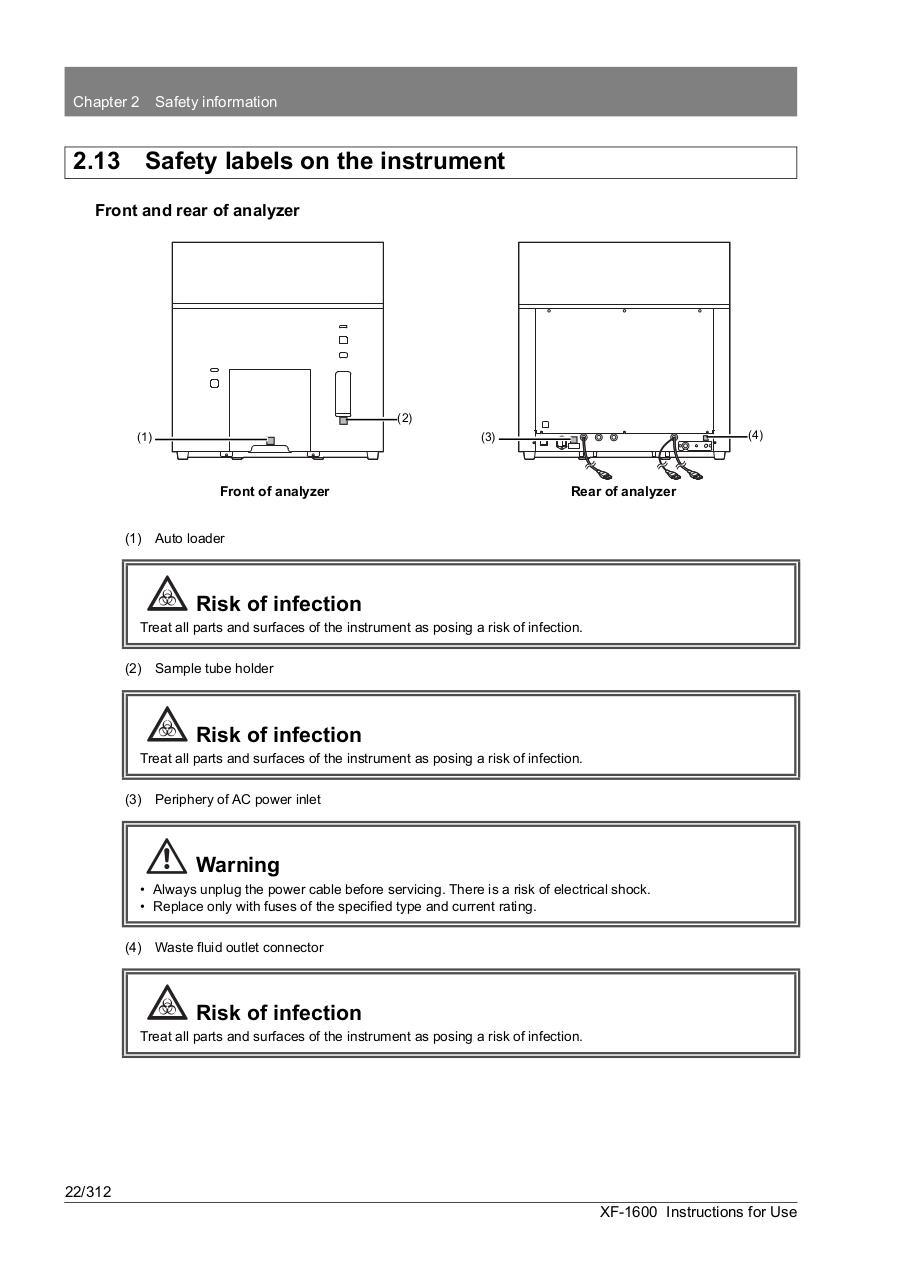

Safety labels on the instrument

Front and rear of analyzer

(2)
(4)

(3)

(1)

Front of analyzer

Rear of analyzer

(1) Auto loader

Risk of infection
Treat all parts and surfaces of the instrument as posing a risk of infection.
(2) Sample tube holder

Risk of infection
Treat all parts and surfaces of the instrument as posing a risk of infection.
(3) Periphery of AC power inlet

Warning
• Always unplug the power cable before servicing. There is a risk of electrical shock.
• Replace only with fuses of the specified type and current rating.
(4) Waste fluid outlet connector

Risk of infection
Treat all parts and surfaces of the instrument as posing a risk of infection.

22/312
XF-1600 Instructions for Use
