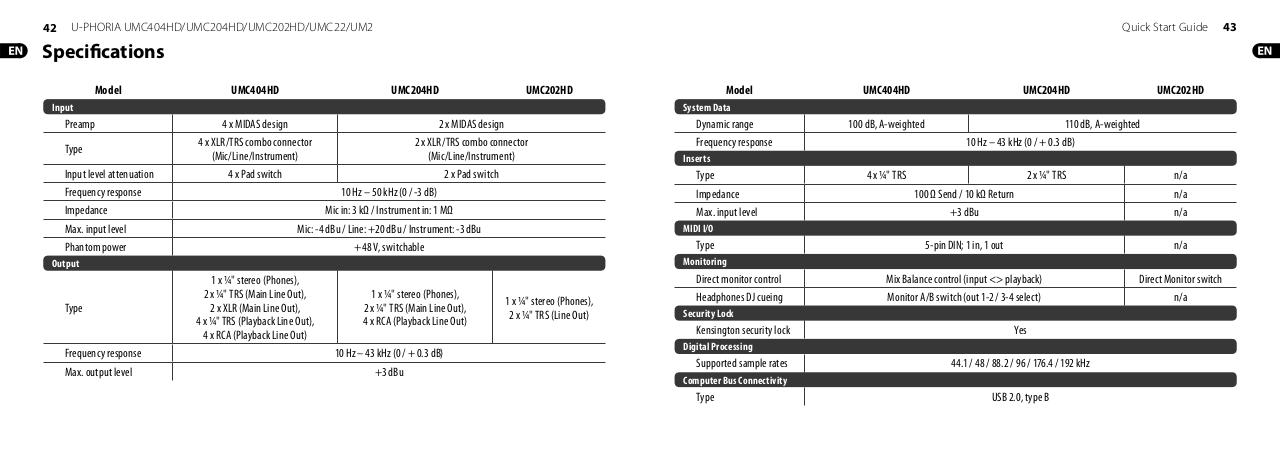

U-PHORIA UMC404HD/UMC204HD/UMC202HD/UMC22/UM2

Quick Start Guide

Specifications
Model

UMC404HD

UMC204HD

UMC202HD

Input

Preamp
Type
Input level attenuation
Frequency response
Impedance
Max. input level
Phantom power

4 x MIDAS design
4 x XLR/TRS combo connector
(Mic/Line/Instrument)
4 x Pad switch

2 x MIDAS design
2 x XLR/TRS combo connector
(Mic/Line/Instrument)
2 x Pad switch
10 Hz – 50 kHz (0 / -3 dB)
Mic in: 3 kΩ / Instrument in: 1 MΩ
Mic: -4 dBu / Line: +20 dBu / Instrument: -3 dBu
+48 V, switchable

Frequency response
Max. output level

UMC404HD

UMC204HD

UMC202HD

Dynamic range
Frequency response

100 dB, A-weighted

110 dB, A-weighted
10 Hz – 43 kHz (0 / + 0.3 dB)

Inserts

Type
Impedance
Max. input level

4 x ¼" TRS
100 Ω Send / 10 kΩ Return
+3 dBu

2 x ¼" TRS

n/a
n/a
n/a

5-pin DIN; 1 in, 1 out

n/a

Mix Balance control (input <> playback)
Monitor A/B switch (out 1-2 / 3-4 select)

Direct Monitor switch
n/a

MIDI I/O

Type
Monitoring

Output

Type

Model
System Data

1 x ¼" stereo (Phones),
2 x ¼" TRS (Main Line Out),
2 x XLR (Main Line Out),
4 x ¼" TRS (Playback Line Out),
4 x RCA (Playback Line Out)

1 x ¼" stereo (Phones),
2 x ¼" TRS (Main Line Out),
4 x RCA (Playback Line Out)
10 Hz – 43 kHz (0 / + 0.3 dB)
+3 dBu

1 x ¼" stereo (Phones),
2 x ¼" TRS (Line Out)

Direct monitor control
Headphones DJ cueing
Security Lock

Kensington security lock

Yes

Digital Processing

Supported sample rates

44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz

Computer Bus Connectivity

Type

USB 2.0, type B
