26

U-PHORIA UMC404HD/UMC204HD/UMC202HD/UMC22/UM2

27 Quick Start Guide

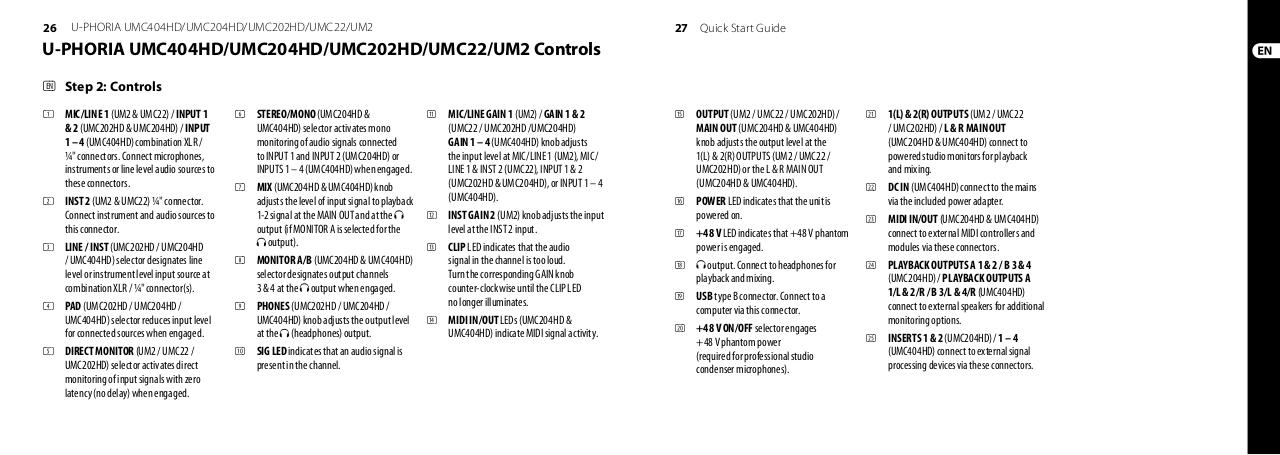

U-PHORIA UMC404HD/UMC204HD/UMC202HD/UMC22/UM2 Controls
(EN) Step 2: Controls
(1)

(2)

(3)

(4)

(5)

MIC/LINE 1 (UM2 & UMC22) / INPUT 1
& 2 (UMC202HD & UMC204HD) / INPUT
1 – 4 (UMC404HD) combination XLR /
¼" connectors. Connect microphones,
instruments or line level audio sources to
these connectors.
INST 2 (UM2 & UMC22) ¼" connector.
Connect instrument and audio sources to
this connector.
LINE / INST (UMC202HD / UMC204HD
/ UMC404HD) selector designates line
level or instrument level input source at
combination XLR / ¼" connector(s).
PAD (UMC202HD / UMC204HD /
UMC404HD) selector reduces input level
for connected sources when engaged.
DIRECT MONITOR (UM2 / UMC22 /
UMC202HD) selector activates direct
monitoring of input signals with zero
latency (no delay) when engaged.

(6)

(7)

(8)

(9)

(10)

STEREO/MONO (UMC204HD &
UMC404HD) selector activates mono
monitoring of audio signals connected
to INPUT 1 and INPUT 2 (UMC204HD) or
INPUTS 1 – 4 (UMC404HD) when engaged.
MIX (UMC204HD & UMC404HD) knob
adjusts the level of input signal to playback
1-2 signal at the MAIN OUT and at the
output (if MONITOR A is selected for the
output).
MONITOR A/B (UMC204HD & UMC404HD)
selector designates output channels
3 & 4 at the output when engaged.
PHONES (UMC202HD / UMC204HD /
UMC404HD) knob adjusts the output level
at the (headphones) output.
SIG LED indicates that an audio signal is
present in the channel.

MIC/LINE GAIN 1 (UM2) / GAIN 1 & 2
(UMC22 / UMC202HD /UMC204HD)
GAIN 1 – 4 (UMC404HD) knob adjusts
the input level at MIC/LINE 1 (UM2), MIC/
LINE 1 & INST 2 (UMC22), INPUT 1 & 2
(UMC202HD & UMC204HD), or INPUT 1 – 4
(UMC404HD).
(12) INST GAIN 2 (UM2) knob adjusts the input
level at the INST 2 input.
(13) CLIP LED indicates that the audio
signal in the channel is too loud.
Turn the corresponding GAIN knob
counter-clockwise until the CLIP LED
no longer illuminates.
(14) MIDI IN/OUT LEDs (UMC204HD &
UMC404HD) indicate MIDI signal activity.
(11)

(15)

(16)
(17)
(18)
(19)
(20)

OUTPUT (UM2 / UMC22 / UMC202HD) /
MAIN OUT (UMC204HD & UMC404HD)
knob adjusts the output level at the
1(L) & 2(R) OUTPUTS (UM2 / UMC22 /
UMC202HD) or the L & R MAIN OUT
(UMC204HD & UMC404HD).
POWER LED indicates that the unit is
powered on.
+48 V LED indicates that +48 V phantom
power is engaged.
output. Connect to headphones for
playback and mixing.
USB type B connector. Connect to a
computer via this connector.
+48 V ON/OFF selector engages
+48 V phantom power
(required for professional studio
condenser microphones).

(21)

(22)
(23)

(24)

(25)

1(L) & 2(R) OUTPUTS (UM2 / UMC22
/ UMC202HD) / L & R MAIN OUT
(UMC204HD & UMC404HD) connect to
powered studio monitors for playback
and mixing.
DC IN (UMC404HD) connect to the mains
via the included power adapter.
MIDI IN/OUT (UMC204HD & UMC404HD)
connect to external MIDI controllers and
modules via these connectors.
PLAYBACK OUTPUTS A 1 & 2 / B 3 & 4
(UMC204HD) / PLAYBACK OUTPUTS A
1/L & 2/R / B 3/L & 4/R (UMC404HD)
connect to external speakers for additional
monitoring options.
INSERTS 1 & 2 (UMC204HD) / 1 – 4
(UMC404HD) connect to external signal
processing devices via these connectors.
