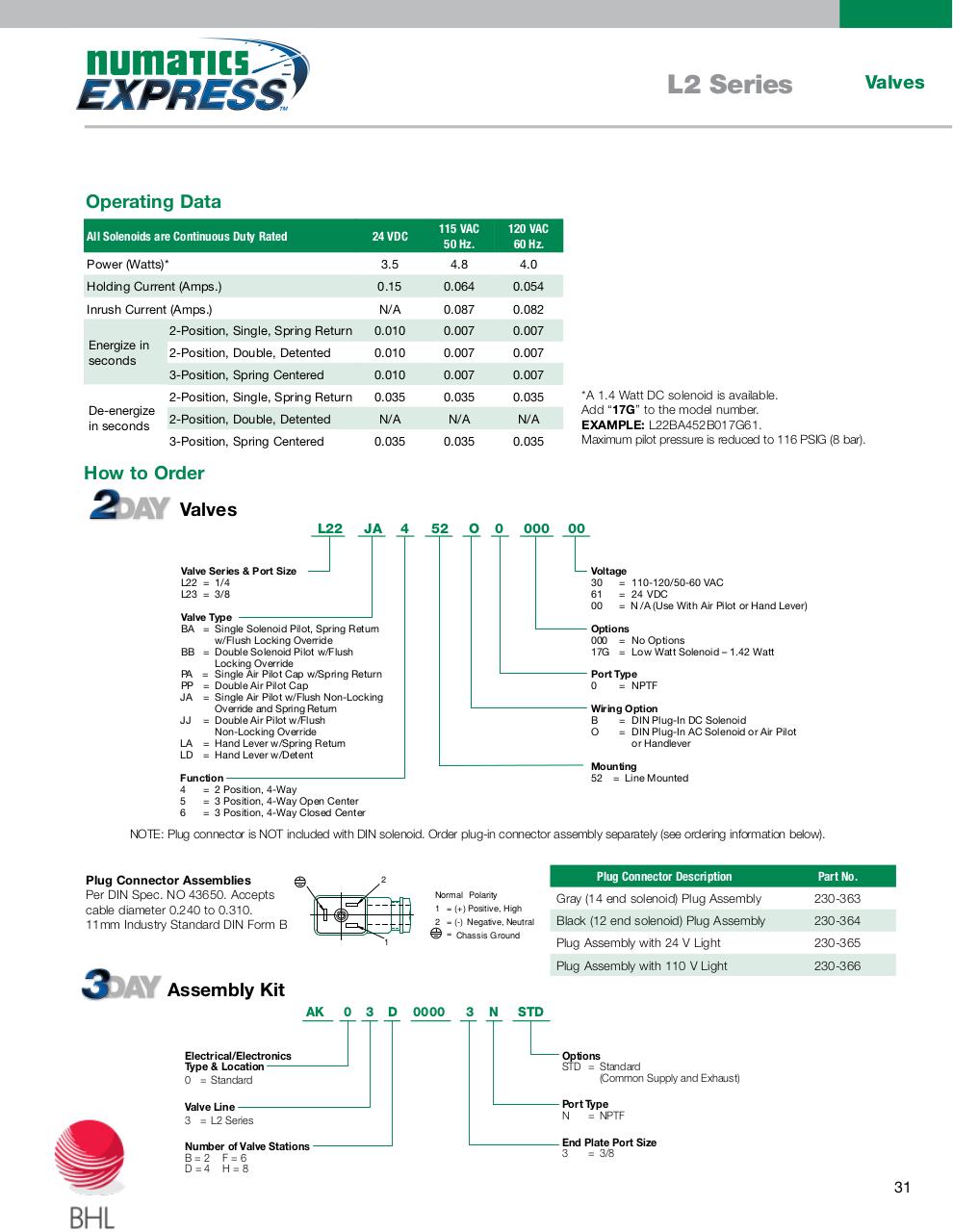

L2 Series

Valves

Operating Data
All Solenoids are Continuous Duty Rated

24 VDC

115 VAC
50 Hz.

120 VAC
60 Hz.

Power (Watts)*

3.5

4.8

4.0

Holding Current (Amps.)

0.15

0.064

0.054

Inrush Current (Amps.)
Energize in
seconds

De-energize
in seconds

N/A

0.087

0.082

2-Position, Single, Spring Return

0.010

0.007

0.007

2-Position, Double, Detented

0.010

0.007

0.007

3-Position, Spring Centered

0.010

0.007

0.007

2-Position, Single, Spring Return

0.035

0.035

0.035

2-Position, Double, Detented

N/A

N/A

N/A

3-Position, Spring Centered

0.035

0.035

0.035


!7ATT$#SOLENOIDISAVAILABLE
Add “17GvTOTHEMODELNUMBER
EXAMPLE: ,"!"'
-AXIMUMPILOTPRESSUREISREDUCEDTO03)'BAR

How to Order
Valves

L22

JA

4

52

O

0

000

00
Voltage
30
= 110-120/50-60 VAC
61
= 24 VDC
00
= N /A (Use With Air Pilot or Hand Lever)

Valve Series & Port Size
L22 = 1/4
L23 = 3/8
Valve Type
BA = Single Solenoid Pilot, Spring Return
w/Flush Locking Override
BB = Double Solenoid Pilot w/Flush
Locking Override
PA = Single Air Pilot Cap w/Spring Return
PP = Double Air Pilot Cap
JA = Single Air Pilot w/Flush Non-Locking
Override and Spring Return
JJ = Double Air Pilot w/Flush
Non-Locking Override
LA = Hand Lever w/Spring Return
LD = Hand Lever w/Detent

Options
000 = No Options
17G = Low Watt Solenoid – 1.42 Watt
Port Type
0
= NPTF
Wiring Option
B
= DIN Plug-In DC Solenoid
O
= DIN Plug-In AC Solenoid or Air Pilot
or Handlever
Mounting
52 = Line Mounted

Function
4
= 2 Position, 4-Way
5
= 3 Position, 4-Way Open Center
6
= 3 Position, 4-Way Closed Center

./4%0LUGCONNECTORIS./4INCLUDEDWITH$).SOLENOID/RDERPLUG INCONNECTORASSEMBLYSEPARATELYSEEORDERINGINFORMATIONBELOW
Plug Connector Assemblies
0ER$).3PEC./!CCEPTS
CABLEDIAMETERTO
MM)NDUSTRY3TANDARD$).&ORM"

Plug Connector Description

2
Normal Polarity
1 = (+) Positive, High

1

2 = (-) Negative, Neutral
= Chassis Ground

Part No.

'RAYENDSOLENOID 0LUG!SSEMBLY



"LACKENDSOLENOID 0LUG!SSEMBLY



0LUG!SSEMBLYWITH6,IGHT



0LUG!SSEMBLYWITH6,IGHT



Assembly Kit
AK

0

3

D

0000

3

N

STD

Electrical/Electronics
Type & Location
0 = Standard

Options
STD = Standard
(Common Supply and Exhaust)

Valve Line
3 = L2 Series

Port Type
N
= NPTF

Number of Valve Stations
B=2 F=6
D=4 H=8

End Plate Port Size
3
= 3/8
