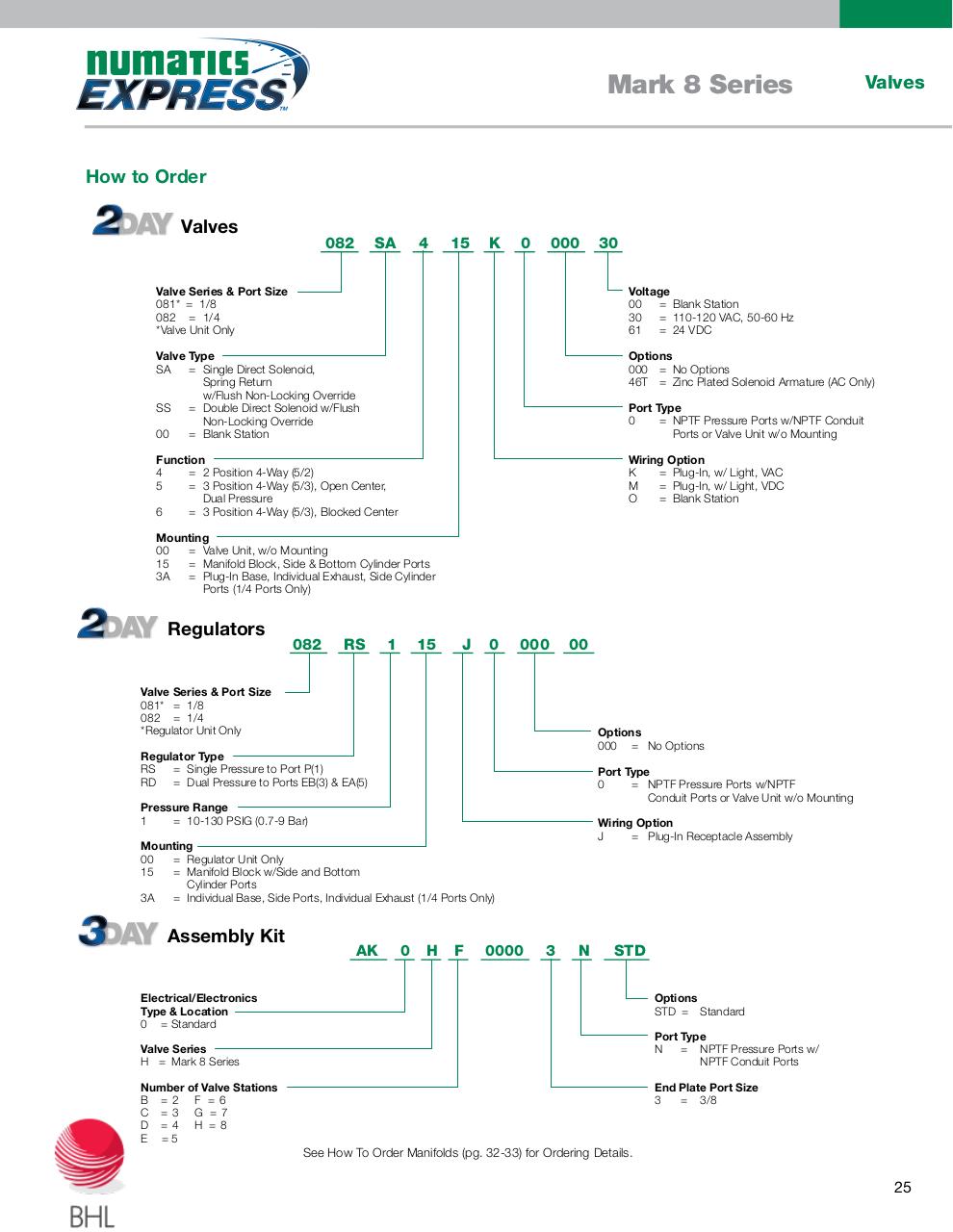

Mark 8 Series

Valves

How to Order
Valves

082

SA

4

15

K

0

000

30

Valve Series & Port Size
081* = 1/8
082 = 1/4
*Valve Unit Only

Voltage
00
= Blank Station
30
= 110-120 VAC, 50-60 Hz
61
= 24 VDC

Valve Type
SA
= Single Direct Solenoid,
Spring Return
w/Flush Non-Locking Override
SS
= Double Direct Solenoid w/Flush
Non-Locking Override
00
= Blank Station

Options
000 = No Options
46T = Zinc Plated Solenoid Armature (AC Only)
Port Type
0
= NPTF Pressure Ports w/NPTF Conduit
Ports or Valve Unit w/o Mounting
Wiring Option
K
= Plug-In, w/ Light, VAC
M
= Plug-In, w/ Light, VDC
O
= Blank Station

Function
4
= 2 Position 4-Way (5/2)
5
= 3 Position 4-Way (5/3), Open Center,
Dual Pressure
6
= 3 Position 4-Way (5/3), Blocked Center
Mounting
00
= Valve Unit, w/o Mounting
15
= Manifold Block, Side & Bottom Cylinder Ports
3A
= Plug-In Base, Individual Exhaust, Side Cylinder
Ports (1/4 Ports Only)

Regulators

082

RS

1

15

J

0

000

00

Valve Series & Port Size
081* = 1/8
082 = 1/4
*Regulator Unit Only

Options
000 = No Options

Regulator Type
RS = Single Pressure to Port P(1)
RD = Dual Pressure to Ports EB(3) & EA(5)

Port Type
0
= NPTF Pressure Ports w/NPTF
Conduit Ports or Valve Unit w/o Mounting

Pressure Range
1
= 10-130 PSIG (0.7-9 Bar)

Wiring Option
J
= Plug-In Receptacle Assembly

Mounting
00
= Regulator Unit Only
15
= Manifold Block w/Side and Bottom
Cylinder Ports
3A
= Individual Base, Side Ports, Individual Exhaust (1/4 Ports Only)

Assembly Kit

AK

0

H

F

0000

3

N

STD
Options
STD = Standard

Electrical/Electronics
Type & Location
0 = Standard

Port Type
N
= NPTF Pressure Ports w/
NPTF Conduit Ports

Valve Series
H = Mark 8 Series
Number of Valve Stations
B =2 F =6
C =3 G =7
D =4 H =8
E =5

End Plate Port Size
3
= 3/8

3EE(OW4O/RDER-ANIFOLDSPG  FOR/RDERING$ETAILS

For detailed dimensional information and technical specifications, please visit www.numatics.com. Information subject to change without notice.
